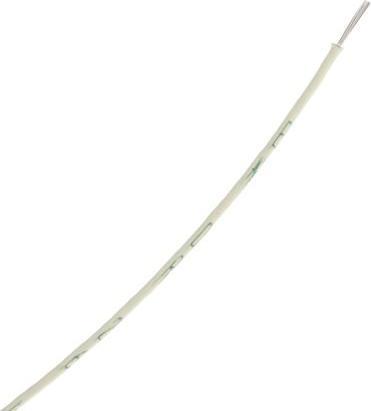

Rs Pro EN2267 aerospace wire 26AWG yellow 100m

100 m
Ratings
BrandMore from Rs Pro
Currently out of stock

Product details

Conductor cross section: 0.13 mm²
Jacket color: Yellow
AWG: 26 AWG
Stranded wire: 19/0.1 mm
Insulation material: Polyamide
Outer diameter: 0.84 mm
Length: 100 m
Operating voltage: 600 V ac
Conductor material: Copper nickel plated
Operating temperature max: +260°C
Behavior in case of fire: Low smoke density
Type: Device wire, switch wire, and airframe wire

Aircraft wire EN2267 is designed for general high-performance applications for aircraft and helicopters. These typical applications require excellent temperature stability and lightweight. Features and benefits include a lightweight design, resistance to chemicals and arcing, UV laser printability, an operating temperature range of -65 °C to +260 °C, polyamide/PTFE material, small diameter, flexibility, and excellent temperature stability.

Key specifications

cable type
T-wire
Cable cross section
0.13 mm²
Voltage
600 V
Cable length
100 m
Exact colour description
Yellow
Item number
9908386

General information

Manufacturer
Rs Pro
Category
Cable conductors
Manufacturer no.
1113141
Release date
16.10.2018
External links
Manufacturer's site (de)

Colour

Colour
White
Exact colour description
Yellow

Material

Material group
Metal
Material
Polyamide
Material of the isolation
Polyamide

Cable properties

cable type
T-wire
Cable cross section
0.13 mm²
Number of cores
19 x
Nominal voltage U
600 V

Power supply

Voltage
600 V

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Cable length
100 m
