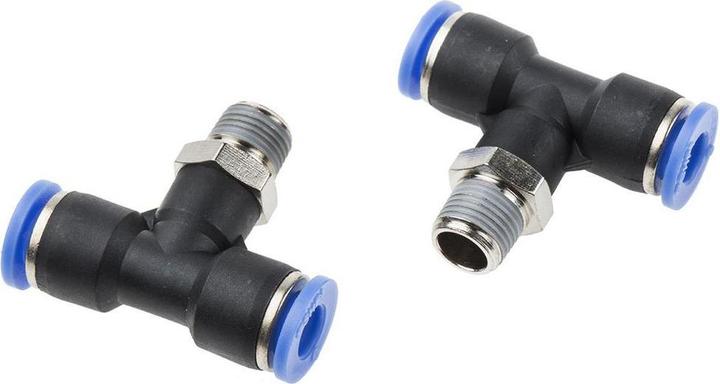

RS PRO Branch Tee Adaptor, R1/8 x 6 mm

Pipe connection A = Push-in installation 6 mm
Pipe connection B = Push-in installation 6 mm
Housing material = Polyoxymethylene
Thread material = Nickel-plated brass
Maximum operating pressure = 10 bar
Pipe connection B - Type = Push-in
Pipe connection A - Pipe size = 6 mm
Maximum operating temperature = +60 °C
Pipe connection A - Type = Push-in
Pipe connection B - Pipe size = 6 mm
Connector A - Standard thread = R

RS Pro One-Touch Fittings – metric system. Features and benefits: One-touch connection for easy hose attachment allows for immediate hose connection. All models are useful for pipe installation in tight spaces due to the hexagonal wrench. Instant disconnection of the robust technical plastic (POM) sleeve by pressing the sleeve and then simply removing the pipe from the fitting. Fittings are treated with Teflon or have an O-ring on the thread. Nickel-plated brass housing provides protection against contamination for extended lifespan. Technical specifications: Suitable for use with air. Operating pressure range: 0-150 psi. Negative pressure: –29.5 in Hg. Operating temperature range: 32 °F to 140 °F. Product application information: Usable in pneumatic piping and a variety of applications.
