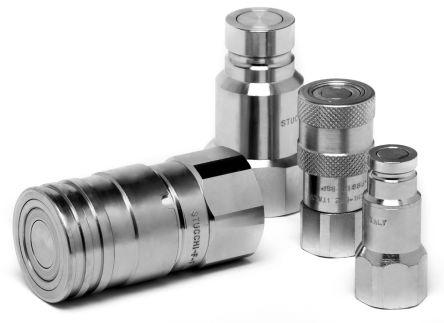

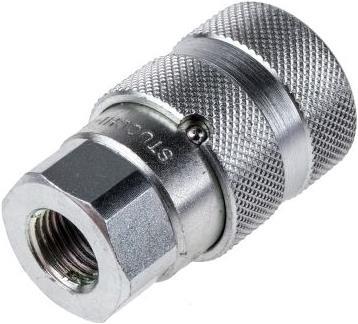

RS PRO 1/4in BSP female flat face body coupler

Series: RS
Compatible with: ISO-DIS 16028
Type: Coupling
Coupling Gender: Socket
Locking Mechanism: Screw Lock
Thread: Rp1/4 Socket
Material: Carbon Steel
Surface: Zinc Plated, Yellow Passivated
Seal Material: Nitrile Rubber
Thread Size: 1/4 inch
Standard Thread: Rp
Thread Gender: Socket
Max Operating Pressure: 400 bar
Max Operating Temperature: +100 °C
Min Operating Temperature: -25 °C

Do not connect the couplings under pressure. Tip with external thread made of carbon steel / coupling with internal thread with flat face. Connection by hand or with tools under maximum operating pressure. Withstands high static pressures. The maximum flow rate can be maintained if a slight loosening of the sleeve occurs. Operating temperature range: -25 to +100 °C. Nitrile seal material. Construction made of carbon steel.
