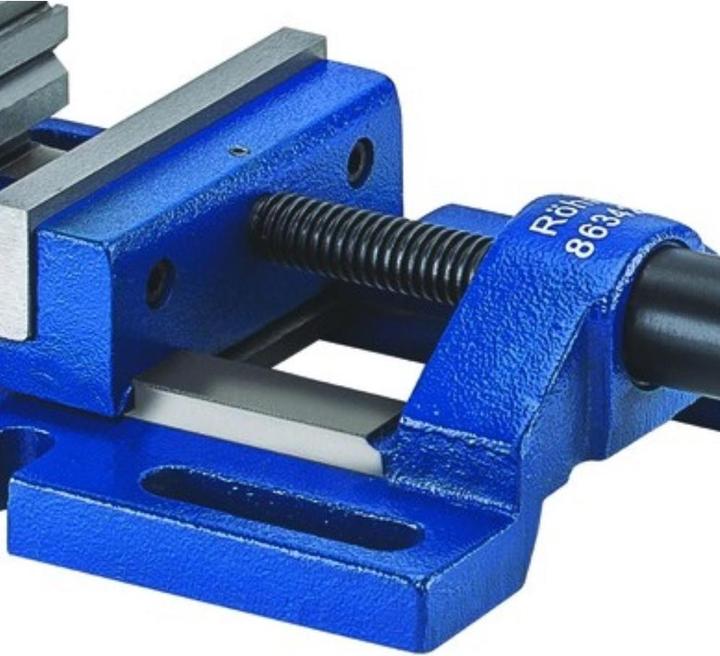

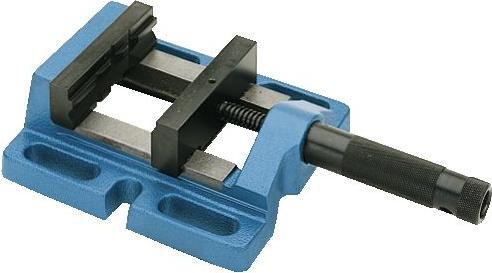

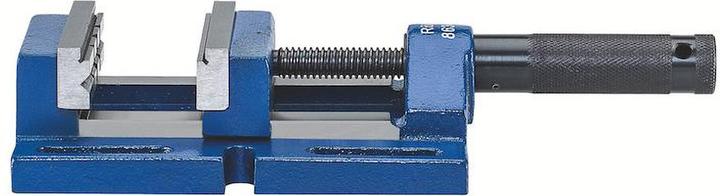

Drilling machine vice DPV. Size 3, jaw width 120 mm, with prismatic and normal jaw. Designed for safe clamping of workpieces on drilling and measuring machines. The clamping system is mechanical and manually operated. The standard design allows the whole clamping range to be bridged by turning. It features a constant overall length, with the spindle moving protected in the handle and a cover of the threaded spindle by a protective sleeve. The vice has a solid and handy design, with a base body made of grey cast iron. The movable jaw is laterally guided, while the fixed clamping jaw includes three vertical prisms and one horizontal prism. Both jaws have a support surface for clamping flat workpieces, and the jaws and spindle are burnished.
Diameter | 110 mm |
Length | 345 mm |
Items per sales unit | 1 x |
Item number | 12030280 |
Manufacturer | Röhm |
Category | Vices + Clamps |
Manufacturer no. | 863423 |
Release date | 28.9.2019 |
Sales rank in Category Vices + Clamps | 189 of 6442 |
Material group | Metal |
Material | Gray iron |
Type of clamping device | Bench vise |
Diameter | 110 mm |
Jaw width | 120 mm |
jib length | 120 mm |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Length | 345 mm |
Width | 120 mm |
Weight | 6300 g |
Length | 36 cm |
Width | 19 cm |
Height | 7 cm |
Weight | 6.24 kg |
