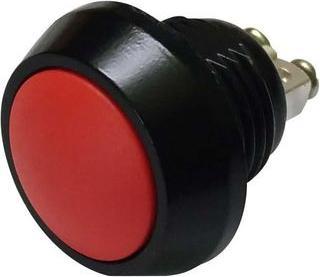

RND Components Vandal Resistant Push Button Push End SPST Panel Mount Black/Red
Product details
The vandal-resistant push button from RND Components is a reliable solution for applications where robustness and durability are required. With a diameter of 12 mm and an SPST contact configuration, this button provides a simple and effective way to control electrical circuits. The panel mounting allows for easy installation in various devices or enclosures. The button is made of PBT, a material known for its high resistance, and features a striking black/red combination. With an IP65 protection rating, the button is protected against dust and splashes, making it ideal for use in demanding environments. The quick-connect technology ensures simple and time-saving wiring, while the switching function is designed to be momentary, meaning the button is only active when pressed. These features make the button an excellent choice for industrial applications, public facilities, and other areas where safety and reliability are of utmost importance.
- Vandal-resistant design for enhanced security
- IP65 protection rating for dust and splash resistance
- Quick-connect for easy installation
- Durable PBT material for longevity
- SPST contact configuration for simple switching applications.
Colour | Black |
Switch + button type | Push-button switch |
Width | 18 mm |
Item number | 24909863 |
Manufacturer | RND Components |
Category | Buttons + Switches |
Manufacturer no. | RND 210-00567 |
Release date | 28.3.2023 |
Colour | Black |
Exact colour description | Black/Red |
Material | PBT |
Switch + button type | Push-button switch |
Operating mode | Key |
Number of poles | 1x |
Nominal current | 2 A |
Protection type (IP code) | IP65 |
Smart home | Not compatible |
Items per sales unit | 1 pcs. |
Scope of delivery | Colour of the switch=black/red, Conformity with standards=-999, Connection type=quick connection, Contact configuration=SPST, Contact current=2 A, Contact voltage=36 VDC, Labelling=None, Mounting type=panel mounting, Pole=1, Protection class = IP65, Size of cut-out (diameter)=12 mm, Size of cut-out (rectangular)=-888, Switch material=PBT, Switching function=button end, Type of actuator=pushbutton, Type=RND 210-00567, Vandal-proof push-button |
Length | 21 mm |
Width | 18 mm |
Height | 18 mm |
