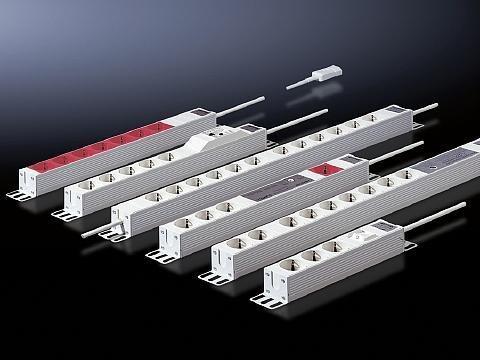

The power strips are available in various country-specific versions with different functional elements. Special attention has been paid to practical and universal mounting: a bracket that can be used in four positions creates a variable mounting option. For example, the 482 mm long power strip can be mounted on 482.6 mm (19") profile rails, on a 19" mounting frame, on the housing frame, or in the rear area of wall distributors. Without additional mounting accessories, the power strip can be used on all profiles with a 25 mm pitch. This greatly simplifies selection, offers additional flexibility, and also saves on storage. The cable management for the supply line has also been considered: when mounted on the 482.6 mm (19") profile, there is enough space to route the supply line without bends between the power strip and the profile rail. The arrangement of the socket pots at a 45° angle allows for unrestricted use.
Switch type | no switch |
Plug type | CEE 7/4 |
Socket strip type | Standard socket strip |
Item number | 14179173 |
Manufacturer | Rittal |
Category | Socket strips |
Manufacturer no. | 7240310 |
Release date | 11.11.2020 |
External links |
Colour | Grey |
Exact colour description | Grey ral 7035 |
Material group | Metal |
Material | Aluminium, Polycarbonate |
Socket strip type | Standard socket strip |
Switch type | no switch |
Number of outlets | 12 x |
Socket type | CEE 7/3 |
Plug type | CEE 7/4 |
Cable length | 2 m |
Area of use | Inside |
Connector layout | Cross |
Max. current load | 16 A |
Nominal voltage | 250 V |
Core cross-section | 1.50 mm |
Number of cores | 3 x |
Smart Home | Not compatible |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Length | 658.60 mm |
Width | 658.60 mm |
Height | 44 mm |
Weight | 1.20 g |
Length | 73 cm |
Width | 8 cm |
Height | 7 cm |
Weight | 1.20 kg |
