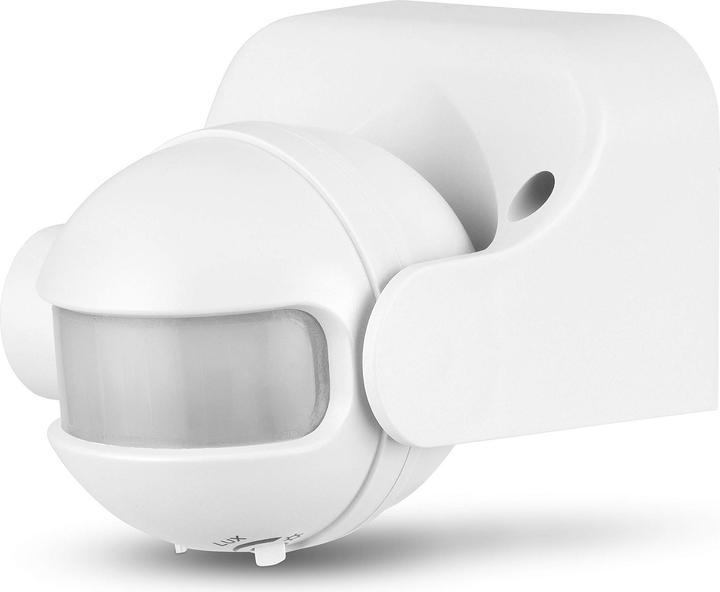

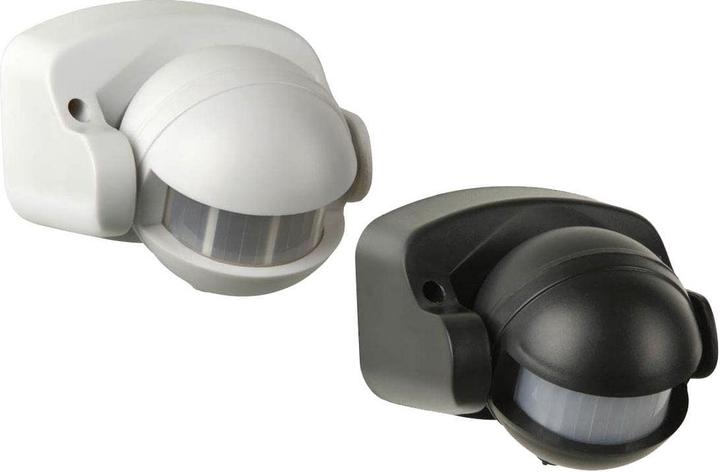

REV Motion detector 180

Motion sensor 180°, white, splash-proof (IP44). The motion sensor operates using passive infrared technology and reacts to movement from heat sources. For example, when a person enters the detection area, the connected light is automatically turned on in the dark. The motion sensor provides security and comfort. Visitors are welcomed with light, while intruders are deterred. The infrared motion sensor saves energy, as the lights are automatically turned off after the set duration. The built-in photodiode prevents the motion sensor from operating during the day.

• Energy-saving
• Range: max. 12 m
• Switching time: 10 seconds - 7 minutes
• Wall-mounted - surface-mounted
• Splash-proof, IP 44
• 230 V~, 50 Hz, max. 1200 W (incandescent lamps), max. 300 VA (fluorescent lamps)
• LED load: max. 200 W, max. 8 lamps
• Includes mounting materials
• Twilight controller
• Vertically adjustable
• Detection range adjustable
• 3-wire technology
• Recommended mounting height 2.5 m.
