Name: RP-T2, thin sheet metal screw 6.0x25/E16 BiMetal A2
Brand: Reisser
SKU: 42733762
Price: 66.9 CHF
Availability: InStock

isSSR

offer

olderThan3MonthTimestamp

path

sectorId

shopArea

slug

tagIds

productDetailPageQuery

productBySlug

alternateLinks

dutchAuctionBannerLazy

alternateLinksByPath

currentAuctionEvent

Zurich

Lausanne

Basel

Kriens

Winterthur

Bern

Dietikon

Geneva

Wohlen

St. Gallen

Reisser

RP-T2 thin sheet screw with a hexagon head and pressed-on washer. Made from bimetal (stainless steel A2/steel), nickel strike, galvanized blue, and anti-friction coated.

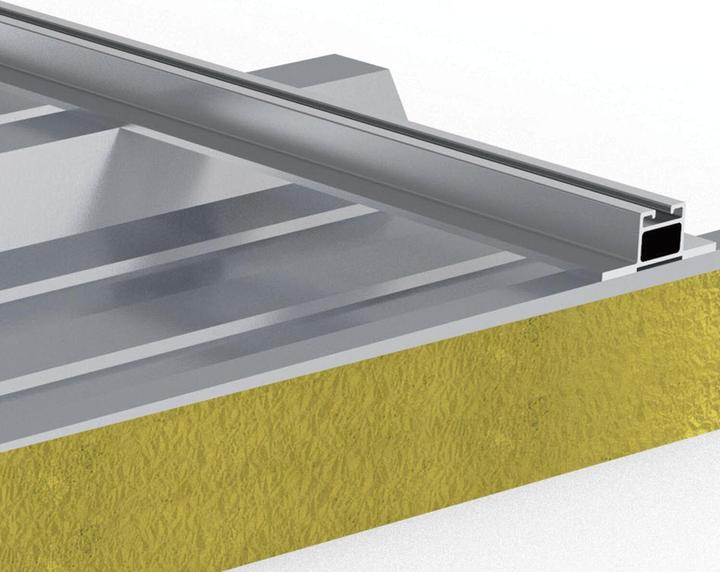

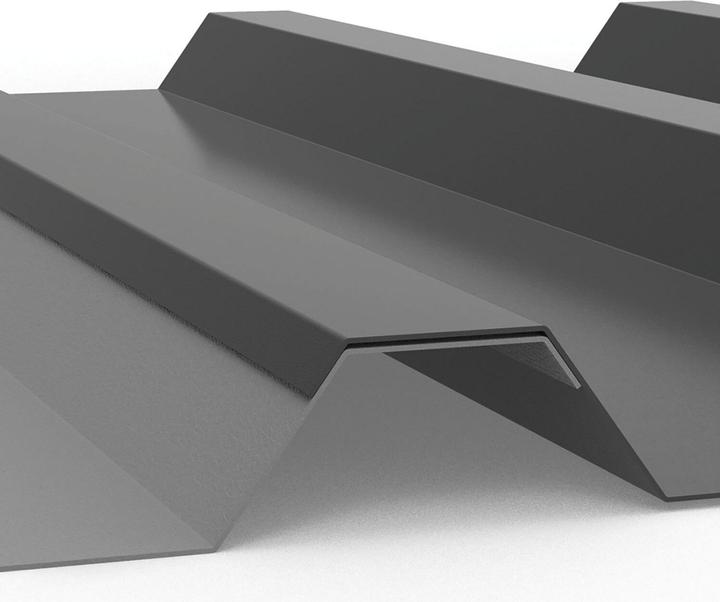

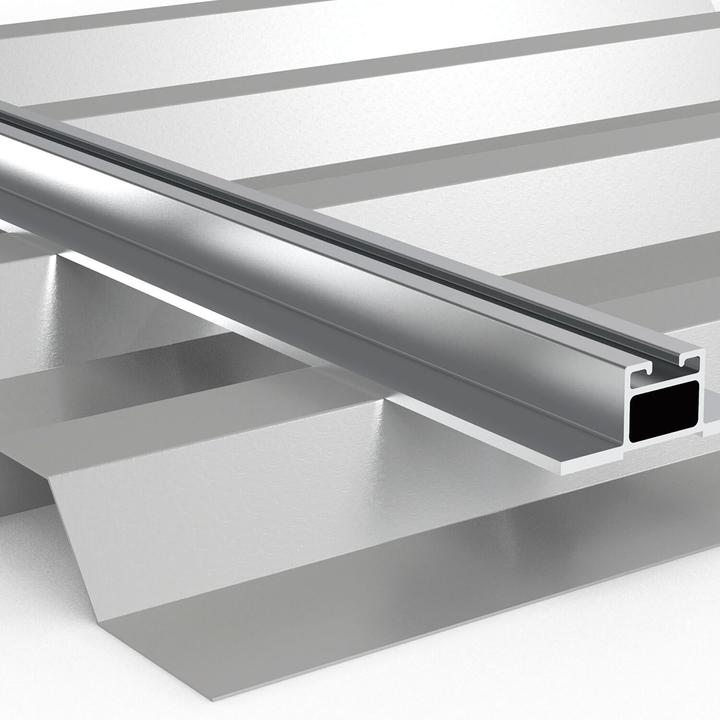

Application: Fastening of aluminum and steel profile sheets on aluminum and steel. Fastening of aluminum standing seam brackets on steel substructures.

Instructions: Apply the screw with increased pressure and low speed (approximately 200 turns). The pressure can be reduced once the thread engages. The speed can then be increased to approximately 1600 revolutions. Immediately before fitting the sealing washer, reduce the speed considerably and tighten the sealing washer until it compresses slightly.

Recommended tightening torque for steel substructures is approximately 3 Nm; for material thickness below 0.8 mm, use 1 Nm. For aluminum substructures, the recommended tightening torque is approximately 1 Nm; for material thickness below 0.8 mm, use 0.5 Nm.

Product benefits: High screw-in speed due to double-start thread. Almost chip-free processing.

Technical data:
- Material: Bimetal (stainless steel A2/steel)
- Material seal: stainless steel A2/EPDM
- Processing speed [rpm]: 1600
- Drilling capacity [mm]: 1 x 1.25 / 2 x 1.0 mm
- Tightening torque [Nm] max: 3.0
- Drilling capacity for Component 1 [mm]: Steel 0.4 - 1.0; Aluminum 0.5 - 1.0
- Drilling capacity for Component 2 [mm]: Steel 0.4 - 1.25; Aluminum 0.5 - 1.5
- Fastening of standing seam brackets on steel: 0.75 - 1.25 mm

Note: Currently regulated according to abZ - future conversion to ETA 21/0306.

Approval: Z-14.1-4, Z-14.1-537. Approval with annex: Z-14.1-4, Annex 3.306b/3.307b Z-14.1-537, Annex 3.1.31/3.2.22 Z-14.4-668 ETA-21/0306, Annex 29.10/29.11/29.20/29.30.

Surface: Nickel strike.
Length (mm): 25
Thread: Two-start sheet metal thread
Diameter (mm): 5
Material: Bimetal, A2 / steel
Head shape: Hexagon head with pressed-on disc
Type: RP-T2
Wrench size (mm): 8
Seal (mm): E16
Length 1 (mm): 24.5
Head diameter (mm): 11.5
Diameter 1 (mm): 6
Brand: REFABO
Contents (pieces): 100.

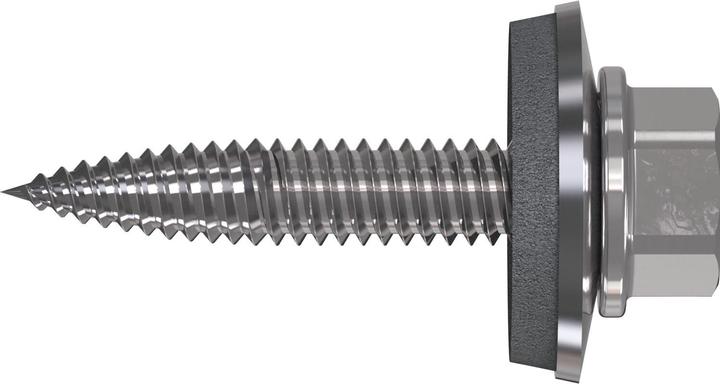

Actual product image Reisser RP-T2, thin sheet metal screw 6.0x25/E16 BiMetal A2 (100 Screws per piece)
