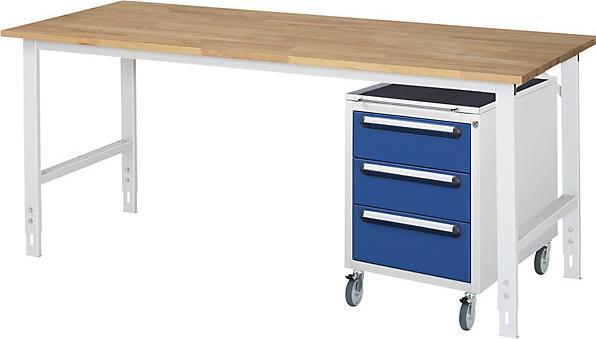

RAU Workbenches Workbench Tom K model 09 with dimensions 2000 x 800 mm

Work table with drawer cabinet and mobile container with 3 drawers (2 x 150 mm, 1 x 180 mm), dimensions W x D 2000 x 800 mm, B-board, thickness 25 mm. Cost-effective complete set consisting of table and drawer container. Height adjustable, stable, load-bearing, and flexible. Free positioning of the understructures. Tables can be expanded with system constructions and system accessories.

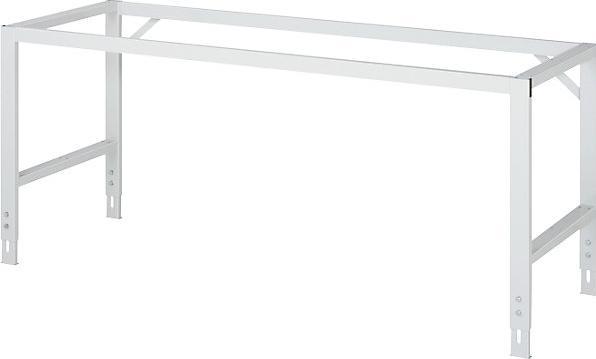

The 4-legged frame consists of two pairs of frame legs made of profile steel tube (60 x 30 x 2 mm) including depth braces (top and bottom). The frame legs are equipped with end elements and height adjustment at the bottom. Cross braces made of profile steel tube (50 x 25 x 2 mm) are located above the work surface (front and back). Bracing crossbeams at the back (left and right) connect the frame leg pair with the rear cross brace. The frame legs are prepared for the installation or retrofitting of a wheel set.

The mobile container has dimensions W x D x H 480 x 600 x 690 mm and features 3 drawers (2 x 150 mm, 1 x 180 mm). The drawer has internal dimensions W x D 390 x 560 mm, a load capacity of 35 kg, and a pull-out of 90%. The usable height of the drawer corresponds to the front height minus 15 mm. The drawer tray is completely closed to ensure optimal accommodation of drawer partition sets. A continuous, partially integrated handle strip is present (including labeling strip). The central lock is a pin cylinder lock with 2 keys.

The top of the cabinet is equipped with a metal overlay that has a 4-sided rolling edge and an anti-slip mat, height 20 mm. A sliding handle is attached to the front of the metal overlay (the sliding handle protrudes 50 mm). The mobile container has 4 swivel castors, 2 of which have brakes. The wheel diameter is 100 mm, the construction height is 125 mm, and the running surface is made of thermoplastic rubber (gray, non-marking, 85° Shore), while the wheel body is made of polypropylene. The swivel castors with brakes are mounted at the front (left and right). The total load capacity is a maximum of 450 kg. The surface is powder-coated.

Delivered disassembled - easy assembly.
