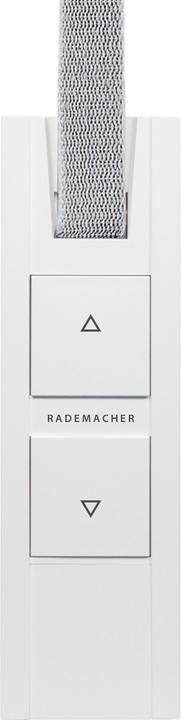

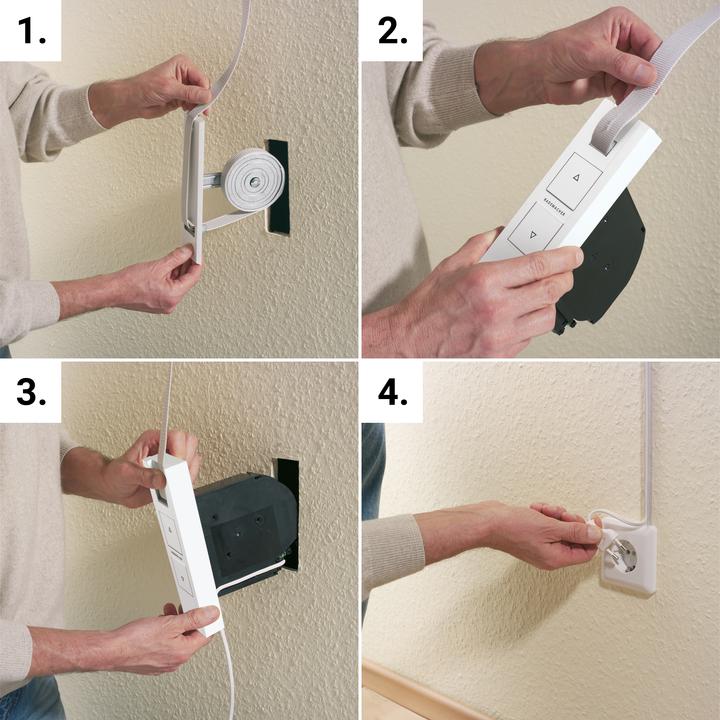

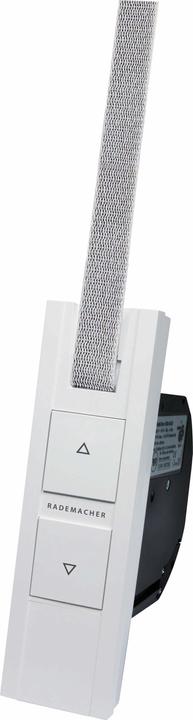

The electric belt winder. The RolloTron Basis is an electric belt winder for flush mounting and is universally applicable, as it fits into any standard belt box starting from 36 mm in width. It is characterized by quick and easy installation. The setup and commissioning take about 10 minutes. The operation is done via a Euro plug connection to the 230V power supply. These features ensure that retrofitting the roller shutter control can be implemented at any time. The RolloTron Basis comes in a modern design with large buttons and is delivered in the color Ultra White. Equipped with a memory function (simple time function), it repeats programmed opening and closing times in a 24-hour cycle.
Electric motor type | Belt winder |
Rated voltage | 230 V |
Weight | 1.18 kg |
Item number | 8478163 |
Manufacturer | Rademacher |
Category | Electric motors |
Manufacturer no. | 18234519 |
Release date | 21.4.2018 |
Sales rank in Category Electric motors | 10 of 1738 |
Colour | White |
Exact colour description | Ultra-white |
Material group | Plastic |
Material | Plastic |
Electric motor type | Belt winder |
Rated voltage | 230 V |
voltage type | AC |
Operating temperature | 0 - 40 °C |
Protection type (IP code) | IP20 |
Power | 0.07 kW |
Power supply | Electrical connection |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Belt |

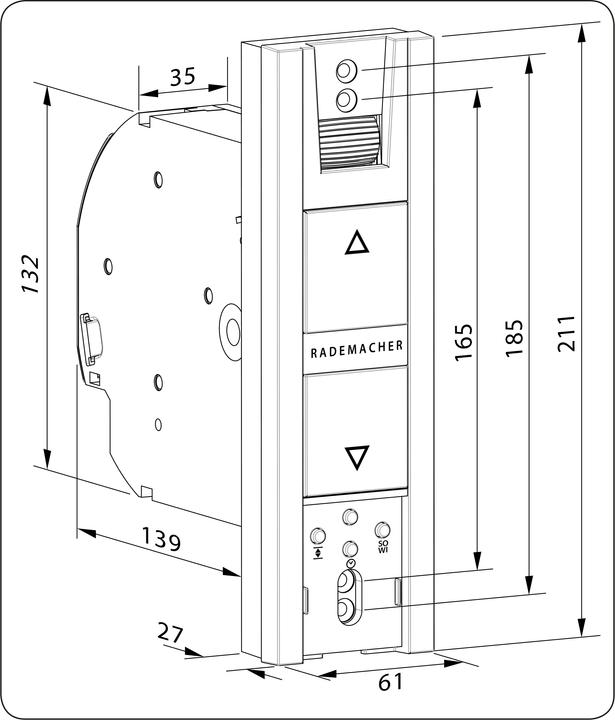

Length | 16.66 cm |
Width | 3.50 cm |
Height | 13.20 cm |
Weight | 1.18 kg |
Length | 24 cm |
Width | 20 cm |
Height | 8 cm |
Weight | 1.09 kg |
