PULS DIN-rail power supply unit (DIN-rail

1Ratings
BrandMore from PULS
Delivered between Mon, 2.3. and Tue, 3.3.
Only 3 pieces in stock at third-party supplier
Supplied by
Conrad CH
free shipping

Performance3

Product details

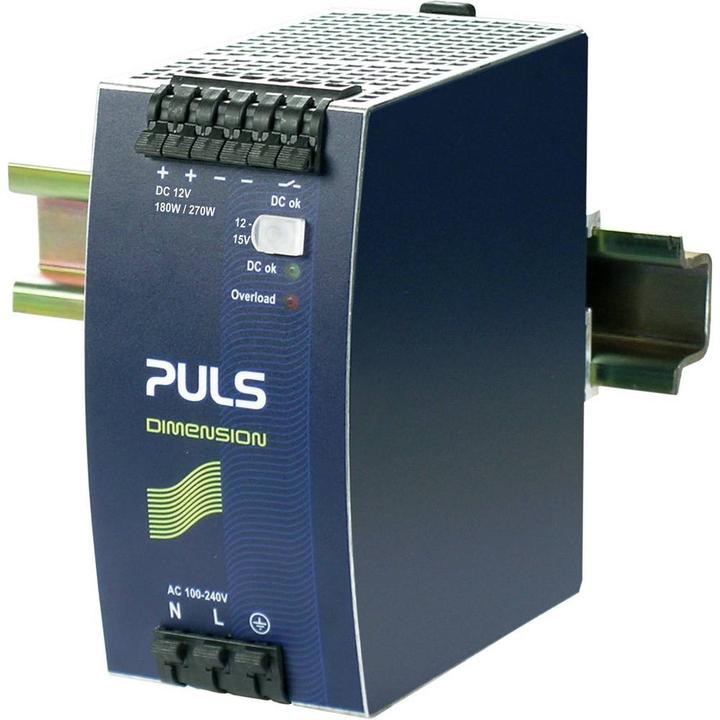

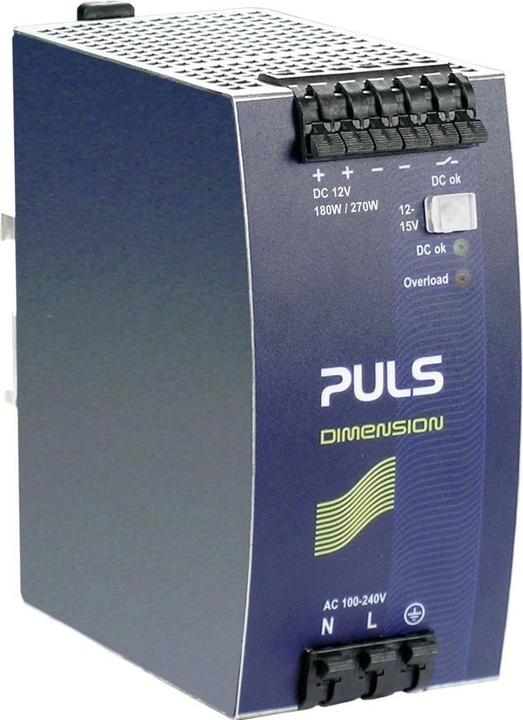

The DIMENSION QS10.121 DIN rail power supply from PULS is a highly developed system power supply designed for use in industrial applications. With an output voltage of 12 V/DC and a maximum output current of 15 A, this power supply provides a power output of 180 W. It is suitable for mounting on DIN rails and features a wide input voltage range of 85 to 276 V/AC and 88 to 187.5 V/DC. The device is equipped with spring-loaded terminals that ensure a simple and secure connection. The high efficiency of up to 95% and active power factor correction (PFC) contribute to energy efficiency. Additionally, the power supply offers a 50% power reserve, referred to as BonusPower®, and is designed for operating temperatures of up to +60 °C. The comprehensive certification package and minimal inrush current peaks make it a reliable choice for demanding applications.

  • Input voltage range of 85 - 276 V/AC and 88 - 187.5 V/DC
  • Efficiency of up to 95%
  • Active PFC for improved energy efficiency
  • 50% power reserve (BonusPower®)
  • Operating temperature range of -25 °C to +60 °C.

Key specifications

Nominal current
15 A
Nominal voltage
12 V
Number of outlets
1x
Protection type (IP code)
IP20

General information

Item number
8421727
Manufacturer
PULS
Category
Mobile power distributors
Manufacturer no.
QS10.121
Release date
20.4.2018
External links
Manufacturer's site (de)

Mobile power distributor features

Nominal current
15 A
Nominal voltage
12 V
Number of outlets
1x
Area of use
Inside
mounting type
DIN rail mounting
Power
180 W
input voltage
100 - 240 V
output voltage
12 V
Protection type (IP code)
IP20

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
0 kg
Climate contribution
CHF 0.11

Scope of delivery

Items per sales unit
1 pcs.
Scope of delivery
DIN rail power supply unit

Product dimensions

Width
60 mm
Length
152 mm
Height
124 mm

30-day right of return
24 Months Warranty (Bring-in)
