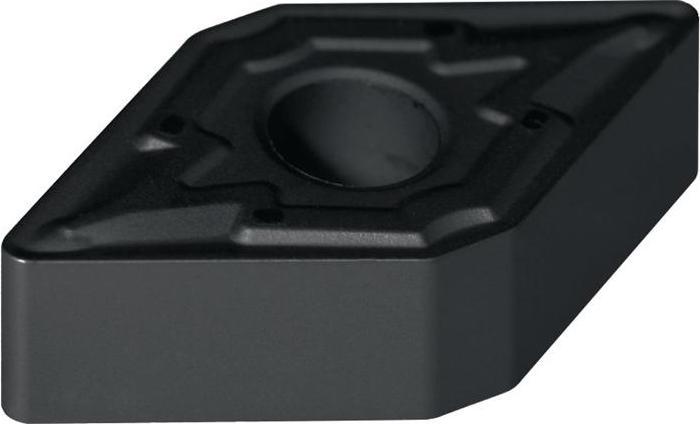

Promat Indexable insert

Indexable insert DNMG 110404-M PMK30 for medium machining. Further technical information:

• Diameter: 9.525 mm
• Application range: medium machining
• Corner radius: 0.4 mm
• Diameter 1: 3.81 mm
• Thickness: 4.76 mm
• Length: 11.6 mm
• Maximum feed: 0.24 mm/rev in steel, 0.18 mm/rev in stainless steel, 0.24 mm/rev in cast iron
• Maximum cutting speed: 190 m/min in steel, 110 m/min in stainless steel, 180 m/min in cast iron
• Minimum cutting speed: 155 m/min in steel, 90 m/min in stainless steel, 145 m/min in cast iron
• Minimum cutting depth: 0.8 mm in steel, 0.8 mm in stainless steel, 0.8 mm in cast iron
• Maximum cutting depth: 3 mm in steel, 2.3 mm in stainless steel, 3 mm in cast iron
• Minimum feed: 0.15 mm/rev in steel, 0.15 mm/rev in stainless steel, 0.15 mm/rev in cast iron.
