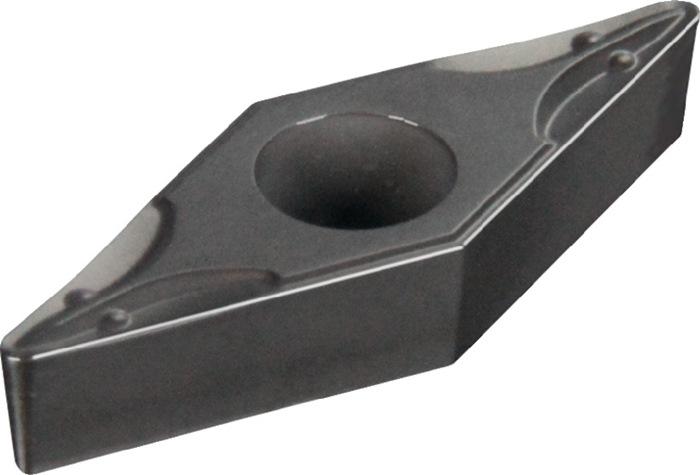

Promat Indexable insert

For medium processing = M

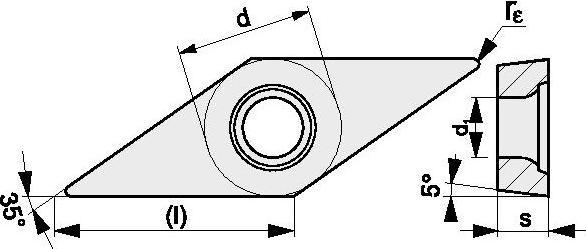

Additional technical specifications:
· d1: 4.4 mm
· s: 4.76 mm
· l: 16.6 mm
· d: 9.525 mm
· r: 0.8 mm
· Application area: Medium processing
· Max. cutting depth: 3 mm in steel / 2.3 mm in stainless steel / 3 mm in cast / - mm in non-ferrous metals / - mm in superalloys / - mm in hardened steels
· Min. cutting depth: 0.8 mm in steel / 0.8 mm in stainless steel / 0.8 mm in cast / - mm in non-ferrous metals / - mm in superalloys / - mm in hardened steels
· Min. feed rate: 0.08 mm/rev in steel / 0.08 mm/rev in stainless steel / 0.08 mm/rev in cast / - mm/rev in non-ferrous metals / - mm/rev in superalloys / - mm/rev in hardened steels
· Max. feed rate: 0.3 mm/rev in steel / 0.23 mm/rev in stainless steel / 0.3 mm/rev in cast / - mm/rev in non-ferrous metals / - mm/rev in superalloys / - mm/rev in hardened steels
· Min. cutting speed (Vc): 100 m/min in steel / 60 m/min in stainless steel / 95 m/min in cast / - m/min in non-ferrous metals / - m/min in superalloys / - m/min in hardened steels
· Max. cutting speed (Vc): 165 m/min in steel / 95 m/min in stainless steel / 155 m/min in cast / - m/min in non-ferrous metals / - m/min in superalloys / - m/min in hardened steels

Quantity: 10 pieces per carton.
