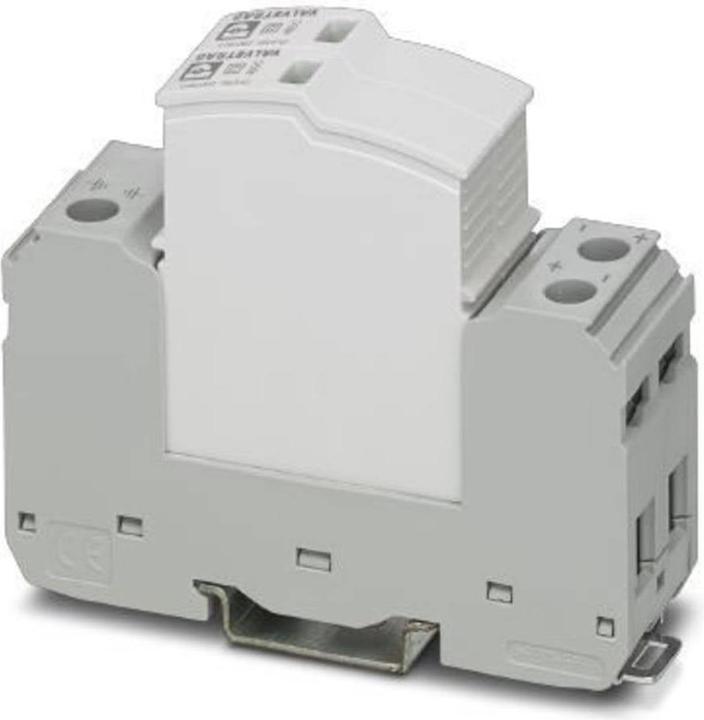

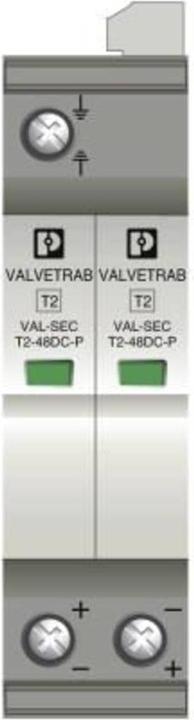

Phoenix VAL-SEC-T2-2+0-48DC-FM 2907865
Only 1 piece in stock at third-party supplier
Product details
The Phoenix VAL-SEC-T2-2+0-48DC-FM 2907865 is a high-quality surge protector specifically designed for the protection of DC power sources with a linear operating characteristic. This device belongs to the Type 2 testing class and provides effective protection against surges that can be caused by lightning strikes or other electrical disturbances. With a rated current of 63 A and a short-circuit switching capacity of 50 kA, this surge protector is capable of safely diverting high surges. Installation is simple and efficient on a DIN rail, making it easy to integrate into various electrical systems. The device complies with the standards IEC 61643-11 and EN 61643-11, underscoring its reliability and safety. With an IP20 protection rating, it is suitable for use in protected indoor areas. The VAL-SEC-T2-2+0-48DC-FM is thus an ideal choice for anyone in need of robust and effective surge protection.
- Plug-in surge protector for DC power sources
- Mounting type: DIN rail mounting
- Surge protection category: III
- Material: Polyamide

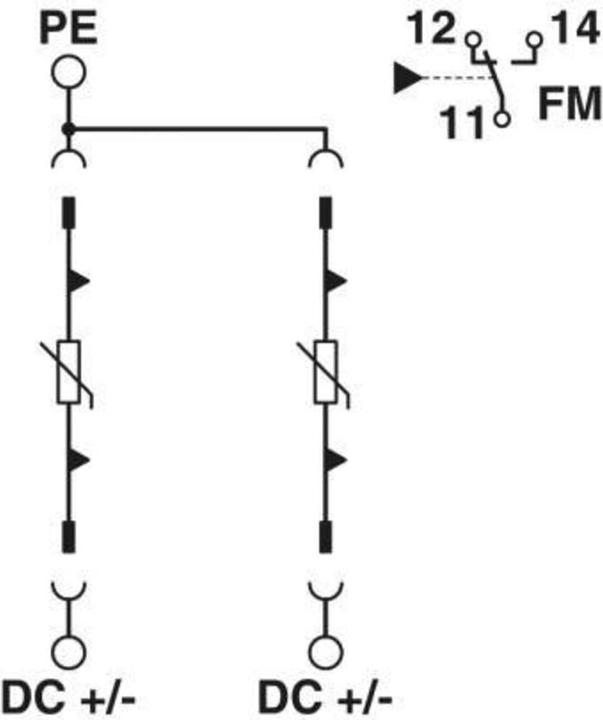

- Remote signaling contact for additional safety.
Test class | Type 2 |
Surge protection type | Surge arrester |
Mounting type | Top-hat rail |
Number of conductors | 2x |
Item number | 32057053 |
Manufacturer | Phoenix |
Category | Surge protection |
Manufacturer no. | 2907865 |
Release date | 25.10.2022 |
Colour | Grey |
Exact colour description | Grey |
Material group | Plastic |
Material | Polyamide |
Surge protection type | Surge arrester |
Number of conductors | 2x |
Lightning impulse current | 20 kA |
Nominal voltage | 48 V |
Mounting type | Top-hat rail |
Mounting type | Screw fastening |
Test class | Type 2 |
Protection type (IP code) | IP20 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |

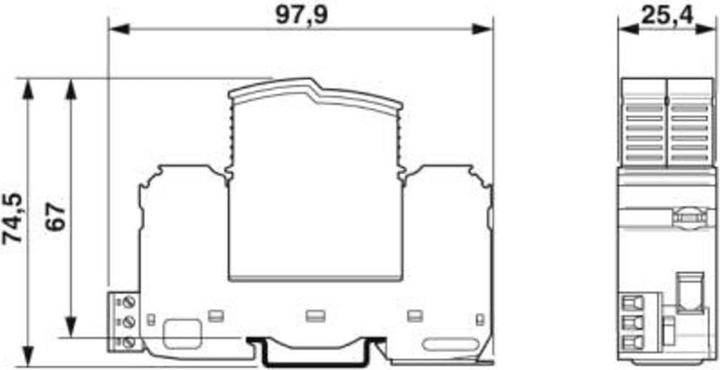

Length | 0.07 m |
Width | 0.03 m |
Height | 0.10 m |
Weight | 206.60 g |
