Phoenix Contact VAL-SEC-T2-350-P
Product details

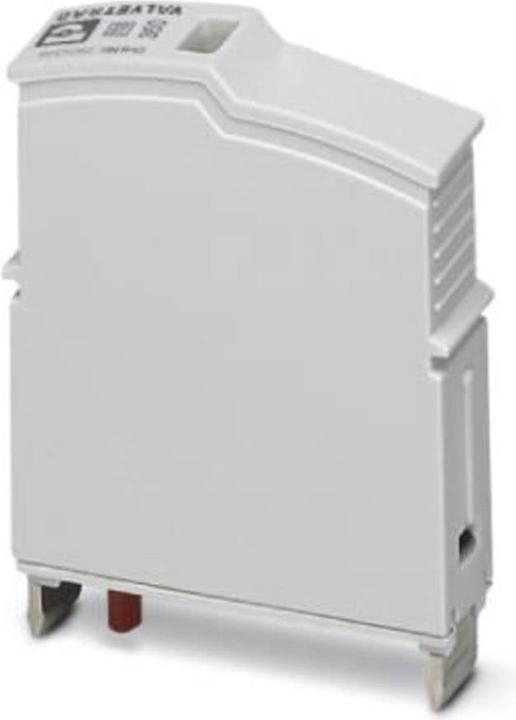

The VAL-SEC-T2-350-P from Phoenix Contact is a replacement plug specifically designed for surge protectors in the VALVETRAB SEC product line. This plug is suitable for the L-N and L-PEN circuits and provides a reliable solution for surge protection. With a nominal input voltage of 240 V, it is designed for various applications in electrical engineering. The plug features a robust construction made from high-quality polyamide and meets the international protection class IP20. This makes it ideal for indoor use, where it is protected from dust and contact. The operating temperature range is from -40 °C to +80 °C, ensuring high flexibility in different environments. Weighing 58.7 g and with compact dimensions, the plug is easy to handle and install.
- Nominal discharge current of 2000 A for effective surge protection
- Operating temperature range of -40 °C to +80 °C
- Made from durable polyamide for increased robustness
- International protection class IP20 for use in protected indoor areas.
Test class | Type 2 |
Surge protection type | Surge arrester |
Mounting type | Top-hat rail |
Item number | 33233832 |
Manufacturer | Phoenix Contact |
Category | Surge protection |
Manufacturer no. | 2905346 |
Release date | 17.5.2023 |
Colour | Grey |
Exact colour description | Light grey |
Material group | Plastic |
Material | Polyamides |
Surge protection type | Surge arrester |
Lightning impulse current | 20 kA |
Rated leakage surge current | 2 kA |
Nominal voltage | 240 V |
Mounting type | Top-hat rail |
Mounting type | Engagement |
Test class | Type 2 |
Protection type (IP code) | IP20 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |

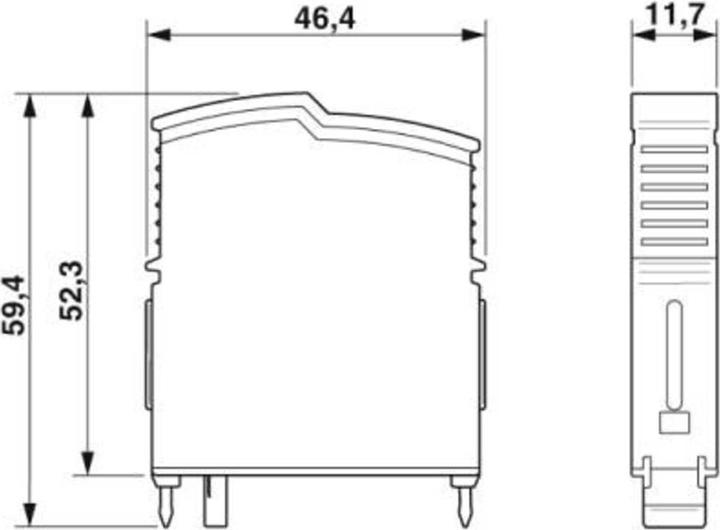

Length | 0.06 m |
Width | 0.01 m |
Height | 0.05 m |
Weight | 58.70 g |
