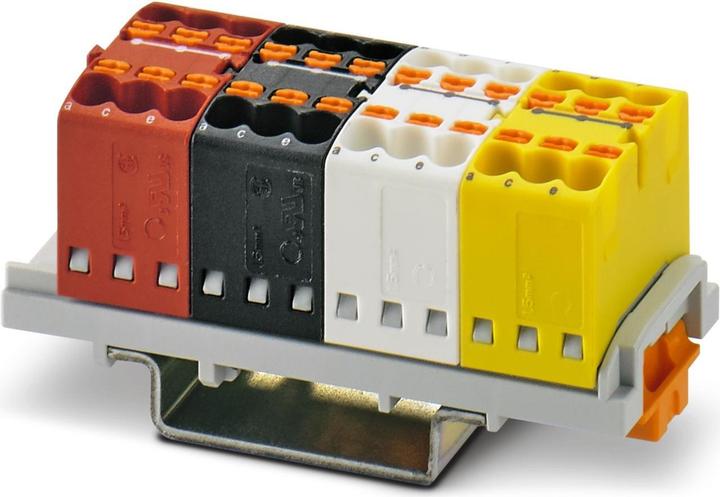

Phoenix Contact Phoenix 1187192 PTFIX 1.5-KNX-NS35Distribution block

The Phoenix 1187192 PTFIX 1.5-KNX-NS35 distribution block is a high-quality product from Phoenix Contact, designed for use in building installations. This distribution block provides a reliable connection for fine-stranded and solid conductors with a cross-section of 0.14 mm² to 2.5 mm². With a rated voltage of 500 V and a rated current of 17.5 A, it is suitable for various applications. The distribution block is designed for mounting on DIN rails of types NS 15 and NS 35/7.5 as well as NS 35/15, allowing for easy installation. The internal bridging of the levels ensures efficient connections between the terminals, while the operating temperature range of -60 to 105 °C guarantees a wide range of applications. The insulating body is made from a special plastic that meets the flammability class V0 according to UL 94, providing additional safety.

• Connection type: Push-in connection for easy and quick wiring
• Internally bridged levels for efficient connections
• Operating temperature range of -60 to 105 °C for versatile applications
• Suitable for fine-stranded and solid conductors with cross-sections from 0.14 mm² to 2.5 mm²
• Mounting on DIN rails of types NS 15 and NS 35/7.5 as well as NS 35/15.
