Product details

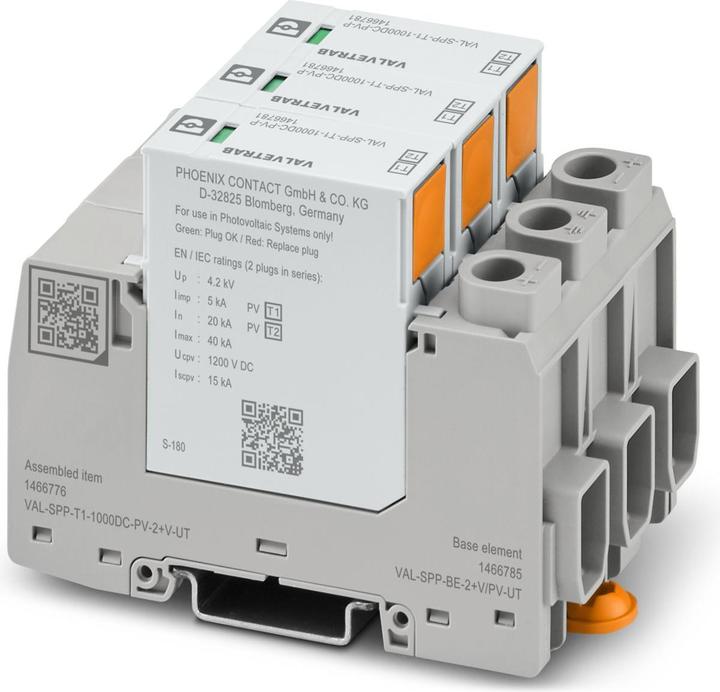

The surge current and overvoltage protector from Phoenix Contact is a highly advanced solution for the protection of 2-pole isolated and grounded PV DC systems with a nominal voltage of up to 1000 V DC. This device is designed for DIN rail mounting and features a 3-pole base element equipped with three pluggable, temperature-monitored protective elements. Each of these elements has a status indication that allows for precise functional monitoring. The surge protector is suitable not only for installation in control cabinets but can also be mounted on walls. Easy installation is facilitated by a screw fastening and the option to snap the device onto a DIN rail. Additionally, the integrated overload protection ensures safe operation in overload situations, enhancing the reliability of the system.
- Test class: Type 1 for reliable overvoltage protection
- Nominal discharge current of 20 kA for high load capacity
- Integrated overload protection with electronic current limiter
- Compatible with VDSL, vectoring VDSL, and G.fast for high data transmission rates
- Protection class IP20 for use in protected environments.
Surge protection type | Lightning current arrester |
Number of conductors | 3x |
Mounting type | Top-hat rail |
Test class | Type 1 |
Item number | 47231020 |
Manufacturer | Phoenix Contact |
Category | Surge protection |
Manufacturer no. | 1466776 |
Release date | 15.7.2024 |
Colour | Grey |
Exact colour description | Grey, Light grey (RAL 7035) |
Surge protection type | Lightning current arrester |
Number of conductors | 3x |
Lightning impulse current | 20 kA |
Rated leakage surge current | 20 kA |
Nominal voltage | 1000 V |
Mounting type | Top-hat rail |
Mounting type | Screw fastening |
Test class | Type 1 |
Protection type (IP code) | IP20 |
Country of origin | Germany |
CO₂ emissions | 29.48 kg |
Climate contribution | CHF 0.70 |
Length | 0.07 m |
Width | 0.05 m |
Height | 0.10 m |
Weight | 379.90 g |
