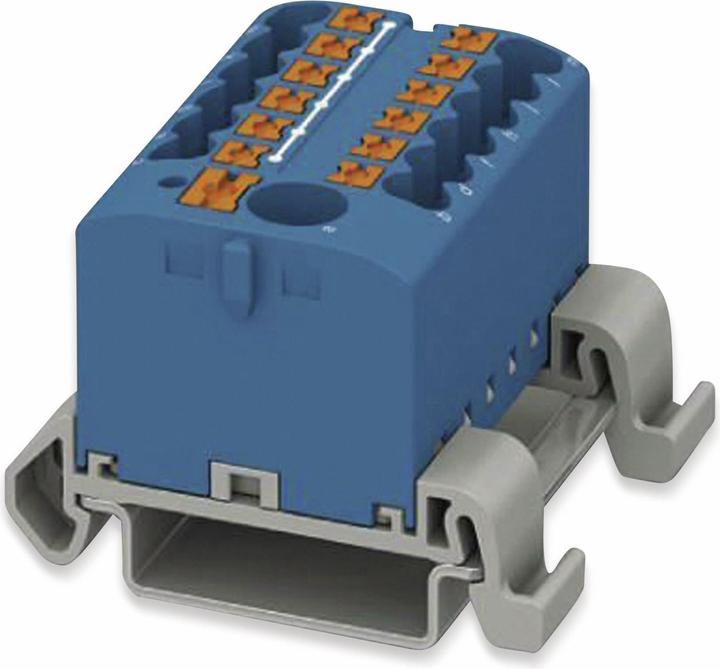

Phoenix Contact Distributor block PTFIX6/12X2,5NS35ABU

The PTFIX6/12X2.5NS35ABU distribution block from Phoenix Contact is a high-quality accessory for electrical installations that enables efficient and safe connections of electrical wires. With a rated voltage of 690 V and a rated current of 24 A, this distribution block is suitable for a wide range of applications. The horizontal orientation and integrated feed ensure easy installation and handling. The ability to bridge the blocks via the conductor shaft provides additional flexibility in wiring. The distribution block is designed for conductor cross-sections from 0.14 mm² to 4 mm² and supports both single-core and multi-core conductors. It is mounted on a DIN rail, facilitating integration into existing systems. The block's insulating body is suitable for operating temperatures ranging from -60 °C to 105 °C, making it a robust choice for various environments.

• Integrated feed for easy installation
• Bridgeable blocks via the conductor shaft
• Suitable for conductor cross-sections from 0.14 mm² to 4 mm²
• Operating temperature range from -60 °C to 105 °C
• Mounting on TH35 DIN rail for flexible integration.
