Phoenix 2906292
Delivered between Tue, 30.6. and Tue, 14.7.
free shipping
Product details

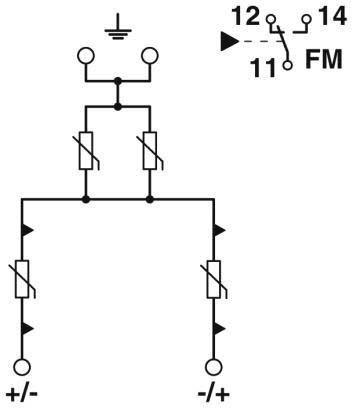

Lightning/surge arrester for 2-position isolated 600 V DC voltage systems, designed for DIN rail mounting. Features a remote indication contact, temperature-monitored protective elements, and a status message on the module.
Surge protection type | Surge arrester |
Number of conductors | 2x |
Test class | Type 1 |
Item number | 31999845 |
Manufacturer | Phoenix |
Category | Surge protection |
Manufacturer no. | 2906292 |
Release date | 24.10.2022 |
Colour | Grey |
Exact colour description | Grey |
Material group | Plastic |
Material | Polyamide |
Surge protection type | Surge arrester |
Number of conductors | 2x |
Lightning impulse current | 6.25 kA |
Rated leakage surge current | 20 kA |
Nominal voltage | 800 V |
Test class | Type 1 |
Protection type (IP code) | IP20 |
Country of origin | Germany, India |
CO₂ emissions | 16.82 kg |
Climate contribution | CHF 0.40 |
Length | 0.07 m |
Width | 0.07 m |
Height | 0.12 m |
Weight | 321.45 g |
Specifications may include unverified machine translations.
30-day right of return
24 Months Warranty (Bring-in)
