Product details

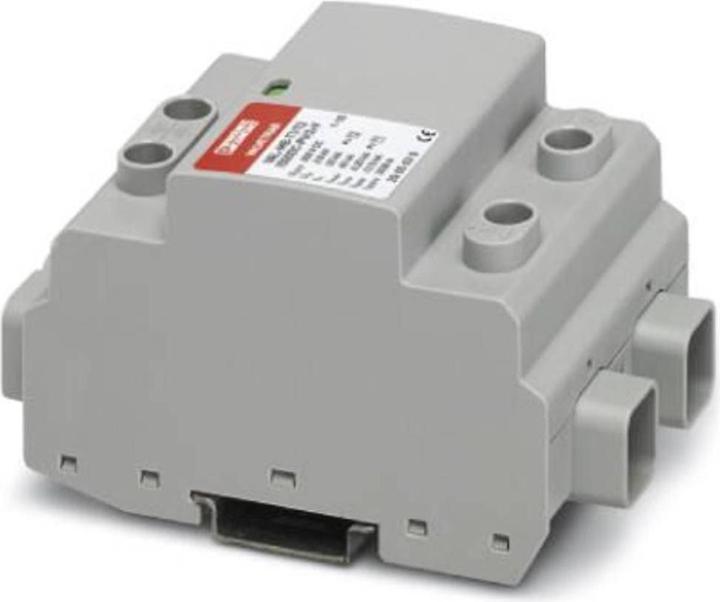

Lightning current/surge arrester for 2-pole isolated DC systems 1000 V DC, designed for mounting rail installation. It features temperature-monitored protective elements and status indication on the module.
Main features:
- Product colour: Grey
- Material: Polyamide
- International protection class (IP code): IP20

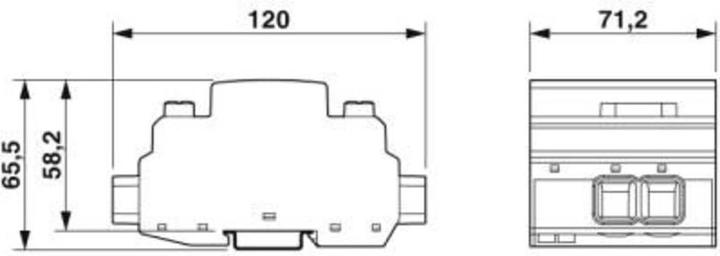

Weight and dimensions:
- Weight: 413.68 g
- Width: 71.2 mm
- Depth: 65.5 mm
- Height: 120 mm
Operating conditions:
- Temperature range in operation: -40 to 80 °C
- Temperature range during storage: -40 to 80 °C
- Height during operation: 0 to 6000 m.
Surge protection type | Combination arrester |
Number of conductors | 2x |
Mounting type | Top-hat rail |
Test class | Type 1 |
Item number | 31362011 |
Manufacturer | Phoenix |
Category | Surge protection |
Manufacturer no. | 2905639 |
Release date | 24.9.2022 |
Colour | Grey |
Exact colour description | Traffic grey |
Material group | Plastic |
Material | Polyamides |
Surge protection type | Combination arrester |
Number of conductors | 2x |
Lightning impulse current | 6.25 kA |
Rated leakage surge current | 20 kA |
Nominal voltage | 1000 V |
Mounting type | Top-hat rail |
Mounting type | Screw fastening |
Test class | Type 1 |
Protection type (IP code) | IP20 |
Country of origin | Germany, India |
CO₂ emissions | 21.69 kg |
Climate contribution | CHF 0.51 |
Length | 0.07 m |
Width | 0.07 m |
Height | 0.12 m |
Weight | 413.68 g |
Specifications may include unverified machine translations.
