Product details

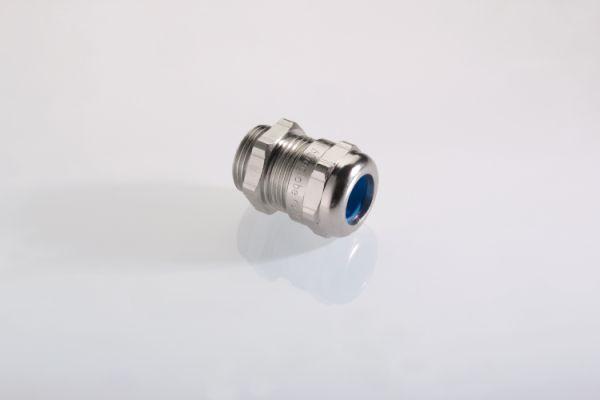

EMC cable gland Blueglobe TRI, made of nickel-plated brass, features maximum attenuation values thanks to 360° shield contact via a triangle spring. It offers high current carrying capacity and ensures simple and secure installation. The sealing insert is made of TPE and includes a removable inlet to extend the sealing area, providing large-area and gentle cable sealing. It has strain relief up to class B in accordance with EN62444 and an O-ring made of HBNR. The protection ratings are IP68 up to 15 bar, IP69, and type 4X. This product has very good mechanical and thermal properties, high resistance to corrosion, wear, and vibration, as well as high UV stability. It is UL Listed and has DNV GL approvals. The short connection thread is M20x1.5, with a sealing range of 9-14 mm and a temperature range of -40 to 130°C.
Item number | 31801543 |
Manufacturer | Pflitsch |
Category | Cable joints |
Manufacturer no. | BG220MSTRI |
Release date | 8.9.2023 |
Material | Nickel plated brass |
Material group | Metal |
Cable connection type | Cable gland |
CO₂-Emission | |
Climate contribution |
Protection type (IP code) | IP68 |
Items per sales unit | 50 x |
