Pfannenberg Visual-acoustic signalling device PA X 1-05 230 AC AM 7035 Orange 230 V/AC 100 dB

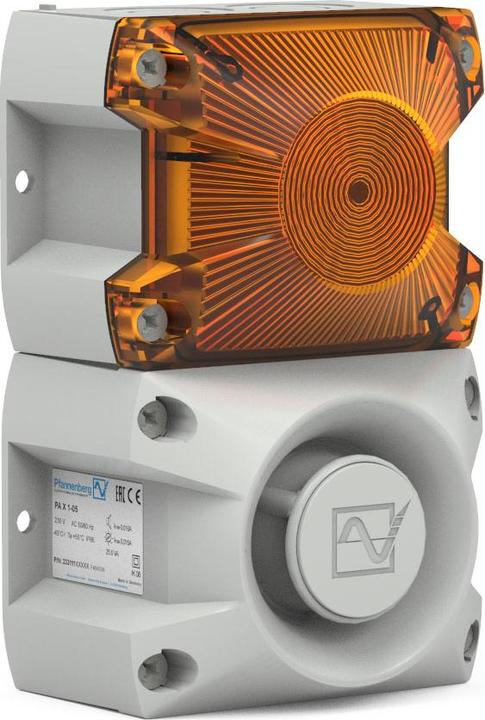

Compact strobe sounder in grey with an orange bonnet. This sounder features an extremely broad frequency spectrum with a high proportion of low tones, allowing for exceptional penetration of obstacles such as doors or walls. It supports flood armouring, meaning a sounder does not need to be placed in every room. The sounder and flashing light sections can be operated independently.

A total of 64 basic tones can be selected, with 80 tones stored, covering all application areas and countries (special devices are not required). Additionally, 3 extra tones can be selected externally. Different tones can be generated with a single device.

Safe installation is ensured as electrical contact is only made in the installed base. Cables can be connected according to the 'junction box' principle, eliminating the need for a third hand during assembly (device, screwdriver, stranded wire). There is no tension or pressure on the terminal points or other components, preventing the crushing of cables.

The sounder has an IK08 impact-resistant housing and an IP66 rating, with closure elements located outside the sealing area, ensuring no influence on the IP protection. It features a captive seal and closing elements. Maximum visibility is 164 m.

Dimensions: LxWxH: 80.6 x 109.5 x 172.4 mm. Operating temperature: -40 to +55°C. Approvals (voltage-dependent or optional): EN54-3, VdS, UL, EAC, GL, MED, CNBOP.
