Pepperl & Fuchs Reflex light barrier

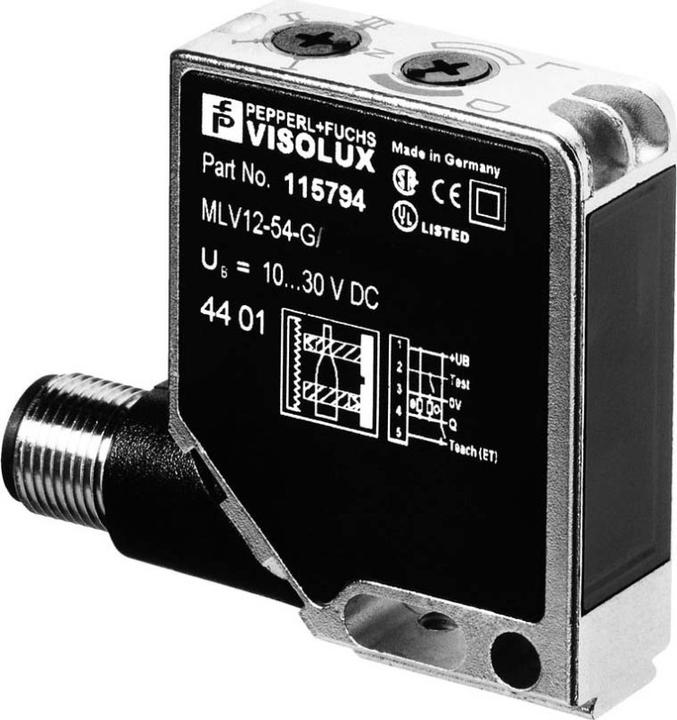

Pepperl+Fuchs factory reflection light barrier MLV12-54G/32/82g/124

Manufacturer: Pepperl+Fuchs factory
Designation: Reflection light barrier
Type: MLV12-54G/32/82g/124
Pre-fault signalling: Yes
With time function: No
Max. switching distance: 5600 mm
With reflector: No
Switching distance: 5600 mm
Analogue output 0 V ... 10 V: No
Analogue output 0 mA ... 20 mA: No
Analogue output 4 mA ... 20 mA: No
Analogue output -10 V ... +10 V: No
With communication interface analogue: No
With communication interface AS-Interface: No
With communication interface CANOpen: No
With communication interface DeviceNet: No
With communication interface Ethernet: No
With communication interface INTERBUS: No
With communication interface PROFIBUS: No
With communication interface RS-232: No
With communication interface RS-422: No
With communication interface RS-485: No
With communication interface SSD: No
With SSI communication interface: No
Electrical connection version: M12 plug connector
Switching output version: PNP
Housing design: Cuboid
Sensor width: 41.5 mm
Sensor height: 49 mm
Sensor length: 15 mm
Material of optical surface: Plastic
Material of housing: Metal
Voltage type: DC
Wavelength of sensor: 660 nm
Type of light: Red light polarised

Operating range: 0 ... 4.2 m
Light transmitter: LED
Type of light: Red, alternating light, 660 nm
Signal output: 1 PNP output, short-circuit-proof, reverse polarity protected, open collector
Switching mode: Light/dark switching switchable
Connection: Metal plug M12, 5-pin, 90° rotatable
Operating voltage: 10 ... 30 V DC
Ambient temperature: -40 ... 60 °C (-40 ... 140 °F)
EAN: 4050143011087.
