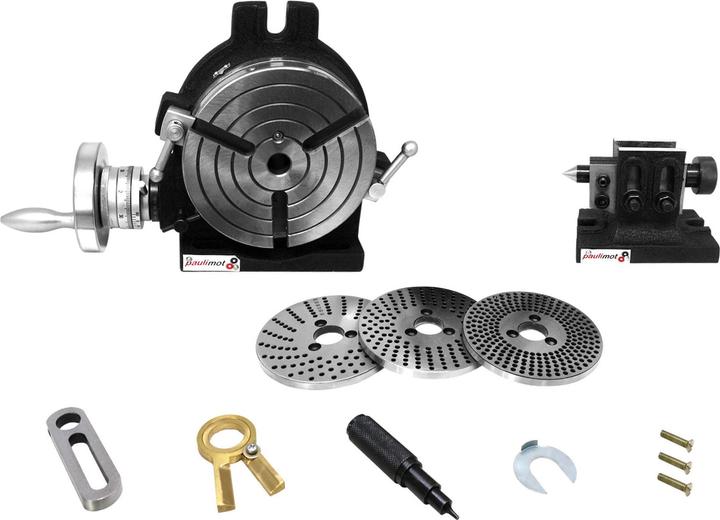

Paulimot Teilapparat-Set mit Rundtisch Ø 150 mm, Reitstock und Teilscheiben

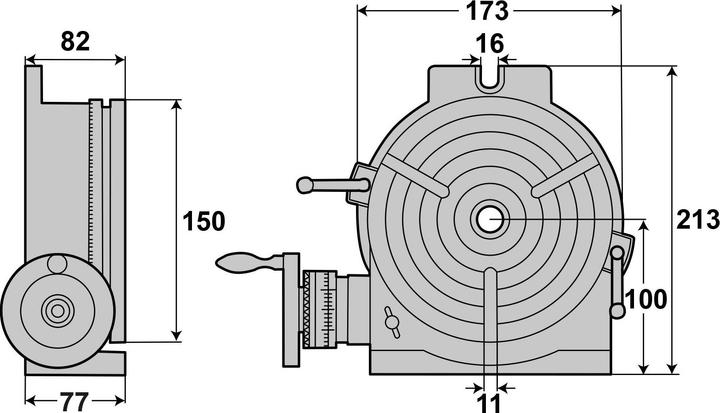

The part apparatus set from Paulimot is a versatile accessory for machines, suitable for both horizontal and vertical applications. With a rotary table of 150 mm in diameter, it provides a precise and stable clamping surface that can be used for various machining processes. The adjustable screw and the worm gear with a ratio of 90:1 allow for fine adjustments and high accuracy. The flatness of the clamping surface is only 0.02 mm, while the parallelism to the base body and the runout accuracy are at 0.02 mm and 0.04 mm, respectively. The height-adjustable tailstock, which can be set from 77 to 103 mm, complements the set and allows for flexible adaptation to different workpieces. The dividing disc set includes a variety of discs that enable precise division, thereby increasing the versatility of the set.

• Horizontal and vertical use of the part apparatus
• Flatness of the clamping surface of 0.02 mm
• Height-adjustable tailstock with a stroke of 27 mm
• Dividing disc set with various division options
• Precise worm gear with a ratio of 90:1.
