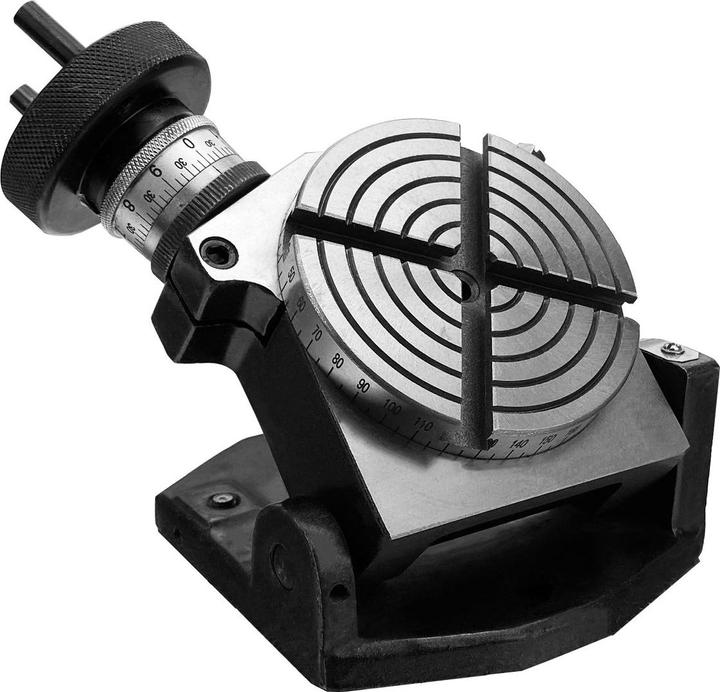

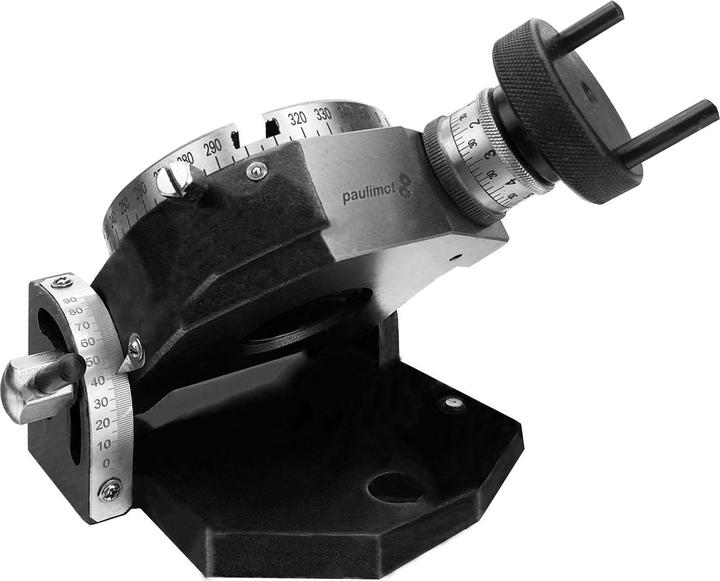

Paulimot Rundtisch Ø 100 mm schwenkbar horizontal / vertikal

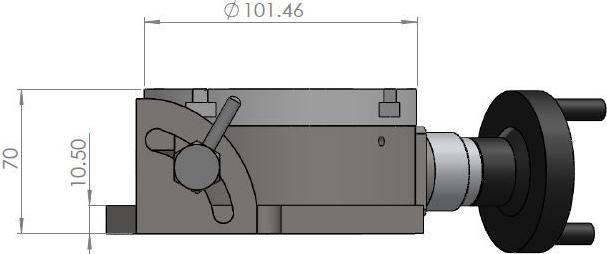

A dividing head is used to machine a workpiece at specific angular positions. With the help of a dividing head, processes such as drilling patterns or gear cutting can be performed. It features an adjustable screw, a worm gear ratio of 36:1, is pivotable in both horizontal and vertical directions, and has a scale of 360°. The flatness of the clamping surface is 0.02 mm, and the parallelism of the clamping surface to the base body is also 0.02 mm. The total height in the horizontal position is 70 mm, and in the vertical position, it is 170 mm. The groove width is 13 mm, and the net weight is 4.9 kg.
