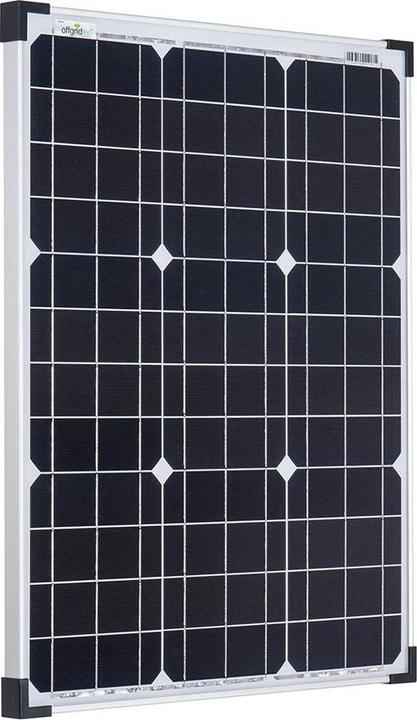

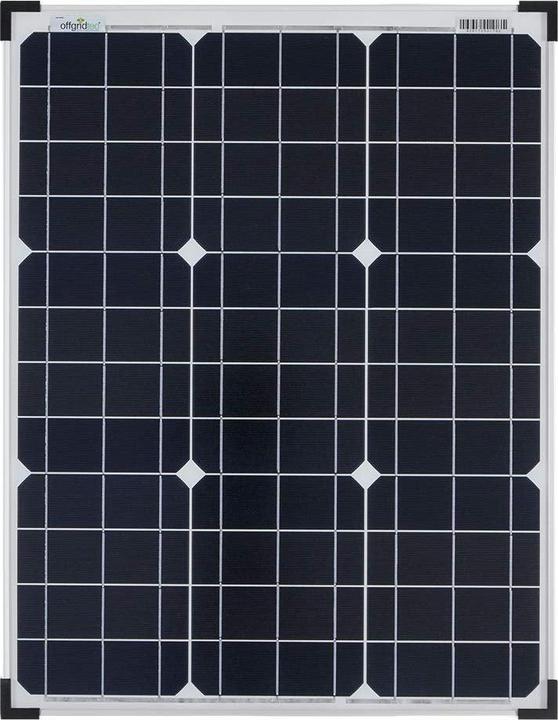

Offgridtec Solar module

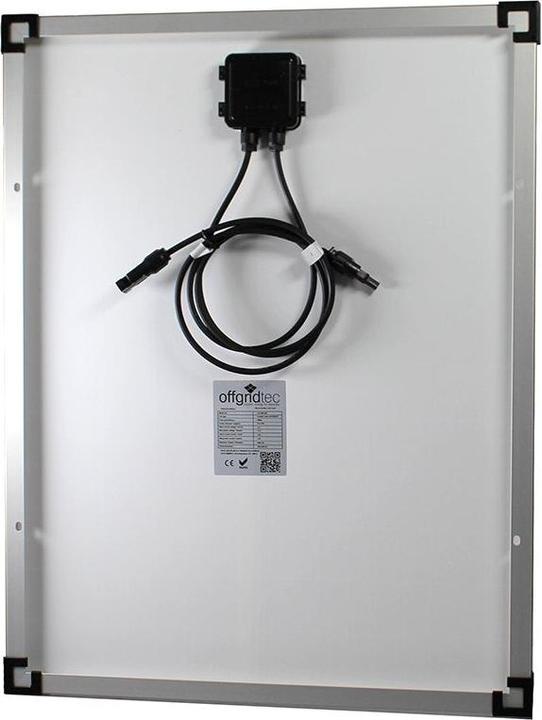

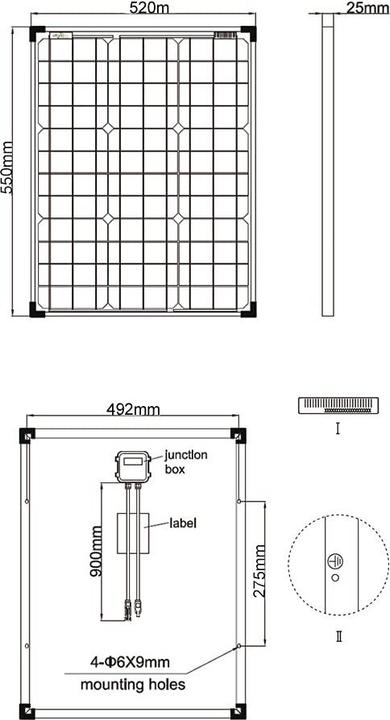

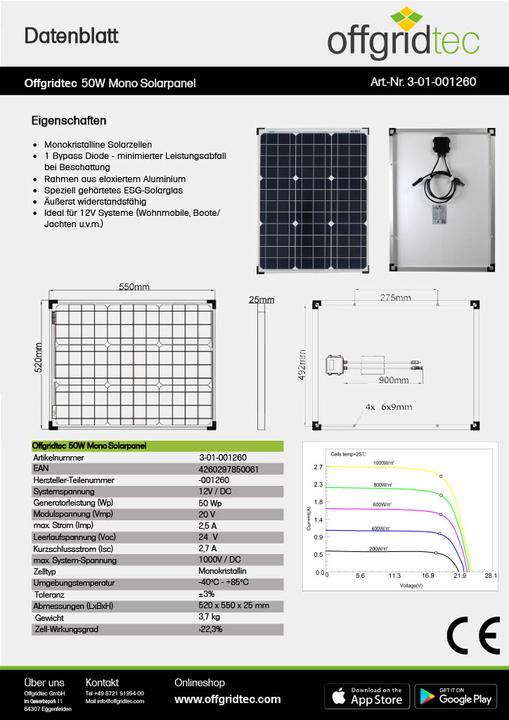

High-quality monocrystalline solar module, ideally suited for charging 12V batteries. Only A-grade cells are used, i.e. only cells that have achieved above-average results in performance tests. Power(Pmax): 50W. Voltage(Vmp): 20V. Max. Current(Imp): 2.5A. Open circuit voltage(Voc): 24V. Short-circuit current(Isc): 2.7A. Max. System voltage: 1000VDC. Ambient temperature: -40°C to +85°C. Dimensions (WxLxH): 520 x 550 x 25 mm. Weight: 3.7 KG Bypass diodes: 1 piece IOSQO50. Protection class junction box: IP65. Temperature coefficient: -0.45%/°C. Cable connection: 2 x 0.8m 4mm² with pre-assembled MC4 connectors are installed. Permanent monitoring of module quality and performance data through tests under real and laboratory conditions. Every Offgridtec solar panel undergoes a flash test before delivery. The solar module itself is fitted with 80cm of connection cable with MC4 connectors. The cell efficiency of the Offgridtec Mono series is 22.3%, which is higher than most modules with similar technical specifications. This is particularly noticeable in the positive power tolerance and measurably higher yield under real conditions. Offgridtec solar panels are equipped with bypass diodes as standard (the number varies depending on the model), which reduces the drop in output in the event of shading.
