OBO Bettermann Vertical arch

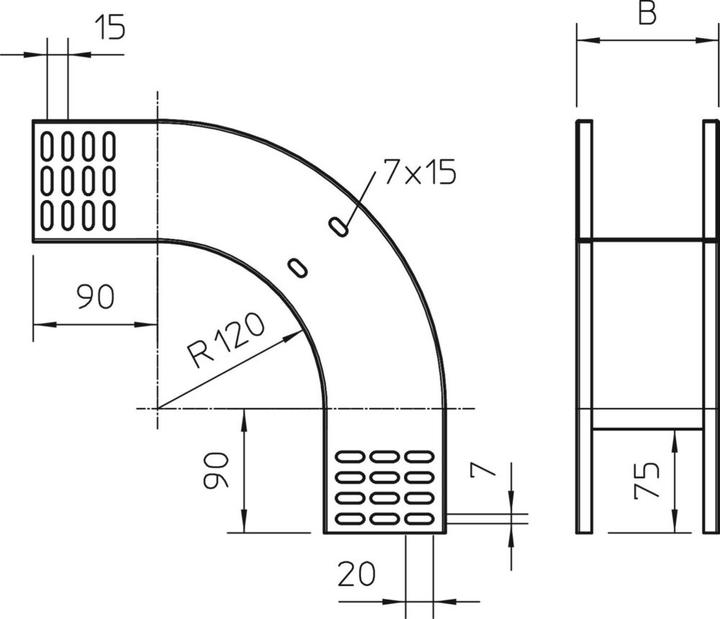

OBO Bettermann vertical bend RBV 860 F FT
Manufacturer: OBO Bettermann
Designation: Vertical bend 90° 85x600mm
Type: RBV 860 F FT
Change of direction: Vertically falling
Angle: 90°
Cable tray height: 85 mm
Cable tray width: 600 mm
Material thickness: 1 mm
Side perforation: No
Mounting hole in base: No
NATO hole pattern: No
Version: Without connector
Wide span version: No
Suitable for functional maintenance: No
Material: Steel
Stainless steel, pickled: No
Material grade: Other
Surface protection: Hot-dip galvanised

OBO Bettermann vertical bend RBV 860 F FT: further details
Vertical bend 90° in falling version for all cable tray types with side height 85 mm.
EAN: 4012195863465.
