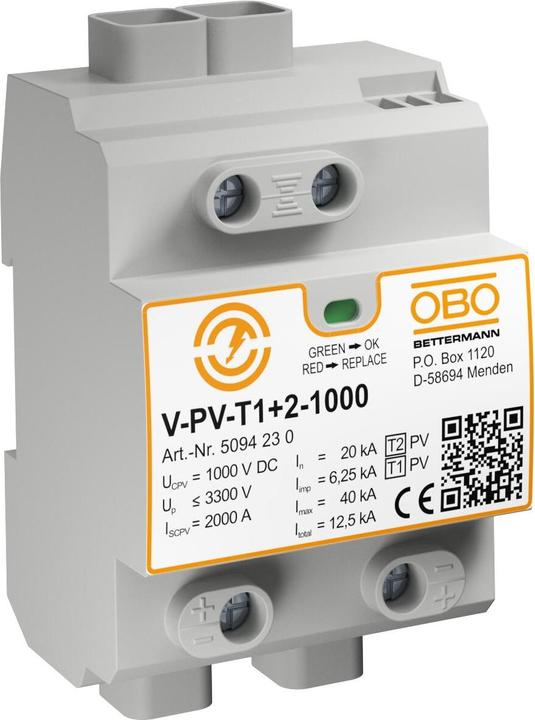

OBO Bettermann SurgeController YSwitch.f.PVSystem
6 items ordered
Product details
The SurgeController Y-switch for PV systems from OBO Bettermann is a highly advanced surge protection device specifically designed for photovoltaic systems. This unit combines lightning protection and surge protection in a compact design and meets the stringent requirements of IEC standards. With a robust Y-circuit, the controller provides a fault-resistant solution that ensures effective diversion of lightning currents and surges. The status indicator allows for easy monitoring of the device's condition, while the optional potential-free changeover contact for remote signaling adds an extra layer of safety. The SurgeController is suitable for mounting on a DIN rail and offers a rated voltage of up to 1000 volts, making it a reliable choice for modern PV systems.
- Type 1+2 combined surge arrester for lightning and surge protection
- Discharge capacity of up to 12.5 kA (10/350) and 40 kA (8/20)
- Fault-resistant Y-circuit with status indicator
- Potential-free changeover contact for remote signaling.
Colour | Grey |
Surge protection type | Combination arrester |
Number of conductors | 3x |
Nominal voltage | 1000 V |
Mounting type | Top-hat rail |
Test class | Type 1, Type 2 |
Item number | 13050416 |
Manufacturer | OBO Bettermann |
Category | Surge protection |
Manufacturer No. | 5094230 |
Release date | 7.4.2020 |
Colour | Grey |
Material group | Plastic |
Surge protection type | Combination arrester |
Number of conductors | 3x |
Lightning impulse current | 12.50 kA |
Rated leakage surge current | 40 kA |
Nominal voltage | 1000 V |
Mounting type | Top-hat rail |
Test class | Type 1, Type 2 |
Protection type (IP code) | IP20 |
Country of origin | Germany |
CO₂ emissions | 29.48 kg |
Climate contribution | CHF 0.70 |
Width | 0.07 m |
Height | 0.12 m |
