OBO Bettermann Screw connection

OBO Bettermann V-TEC VM16 SGR screw connection

Manufacturer: OBO Bettermann
Designation: Screw connection, fully metric
Type: V-TEC VM16 SGR
Thread type: Metric

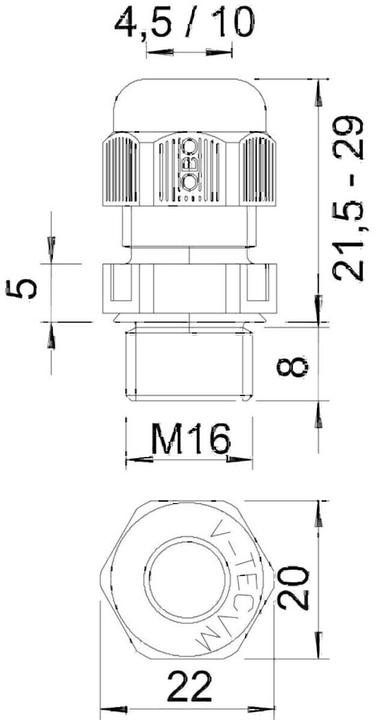

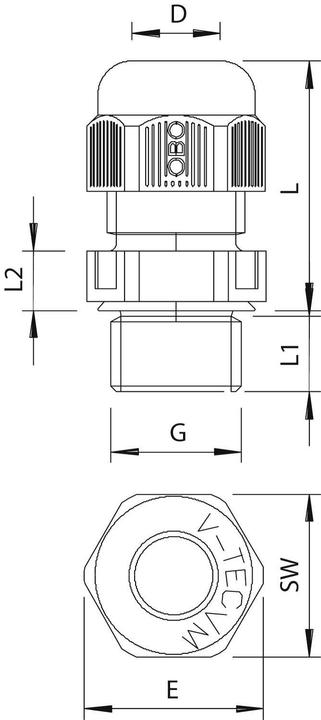

Nominal thread size metric/PG: 16
Thread pitch: 1.5 mm
Thread length: 8 mm
Width across flats: 20 mm
Hexagon corner size: 22 mm
Suitable for cable diameters: 4.5 to 10 mm
Material: Plastic
Material grade: Other
Surface protection: Untreated
Halogen-free: Yes
Glass fiber reinforced: No
Protection class (IP): IP68
Impact resistant: No
Color: Other
RAL number: 7001
Bending protection: No
With locknut: No
Design: Straight
Multiple sealing insert: No
Flat cable gland: No
With strain relief: Yes
Type of seal: Sealing ring
Separable gland: No
Operating temperature: -20 to 65 °C
Explosion-tested version: No
For Ex zone gas: Without
For Ex zone dust: Without

OBO Bettermann V-TEC VM16 SGR cable gland: further details
The quickest and most convenient way to provide strain relief and sealing with cable glands on cable junction boxes and enclosures is the proven V-TEC VM cable glands from OBO. With the integrated sealing lip and special OBO lamella technology, protection class IP68 is achieved. Strain relief and tightness are tested in accordance with DIN EN 50262. The connection threads are metric and can therefore be used universally. Once screwed in, the installation lasts forever: the optimum thread matching with the correct pitch ensures permanent vibration resistance. Applications range from private homes with cable junction boxes to industrial applications in distribution cabinets.

Supplied with: OBO Bettermann V-TEC VM16 SGR, Packaging unit: 1 piece.
