OBO Bettermann OBO UGD55 250-3 9R Underfloor junction box for GES9/55UV

Ratings
Delivered between Wed, 9.7. and Fri, 11.7.
6 pieces in stock at third-party supplier
Supplied by
JACOB DE
free shipping

Product details

OBO Bettermann Underfloor Device Box UGD55 250-3 9R

Manufacturer: OBO Bettermann
Description: Underfloor device box for GES9/55UV
Type: UGD55 250-3 9R
Nominal size: 250 mm
Minimum screed height: 55 mm
Leveling range: 55..80 mm
Suitable for screed-covered underfloor channel: no
Suitable for flush-mounted closed underfloor channel: no
Channel height: 0 mm
Channel width: 190..250 mm
Installation opening for surface tank: no
Installation opening for installation unit: square
Number of installable devices: 9
Material of side wall: steel
Suitable for seal installation: no
Decoupling option for upper part from lower part: no
Bottom plate: yes

Further details:

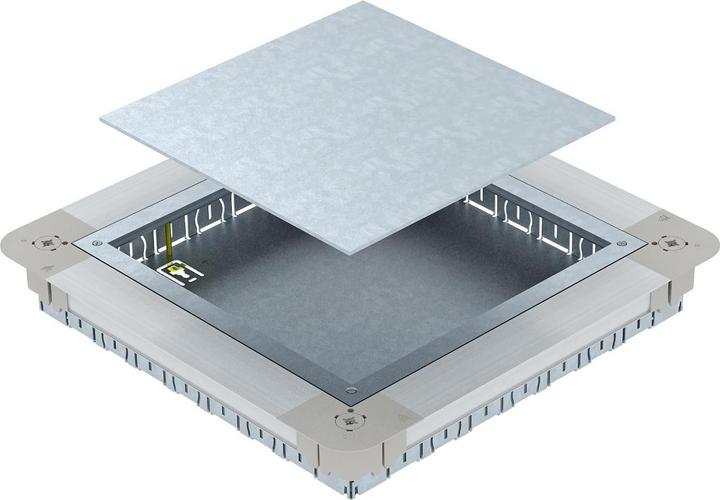

Underfloor device box with mounting cover and blind cover plate with side walls made of sheet steel. For the installation of a square device insert GES9 55 in screed heights starting from 55 mm. Can be continuously leveled to the nominal screed height, and the screed can be worked flush to the screed edge. With conduit entry openings on each side: 7 x M20, 3 x M25, 4 x M32. Usable pipe size at a system height of 55 mm: M20.

Key specifications

Junction box type
Connector socket
Height
367 mm
Width
367 mm
Length
367 mm
Item number
23119741

General information

Manufacturer
OBO Bettermann
Category
Junction box
Manufacturer no.
7410060
Release date
16.11.2022
External links
Manufacturer's site (de)

Material

Material group
Metal
Material
Steel

Junction Box Features

Junction box type
Connector socket
mounting style
Built-in
Area of use
Inside

Origin

Country of origin
Hungary

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
9 pcs.

Product dimensions

Height
367 mm
Width
367 mm
Length
367 mm
