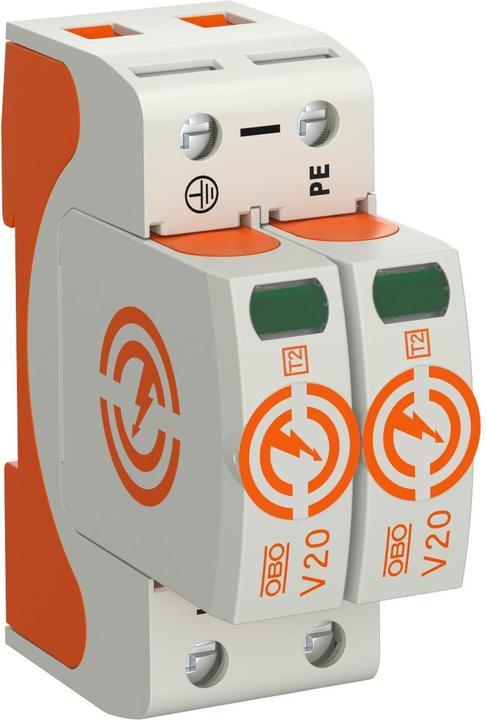

OBO Bettermann OBO SurgeController V20 two-pole 280V
Delivered between Mon, 28.9. and Sat, 10.10.
9 pieces in stock at supplier
9 pieces in stock at supplier
free shipping
Product details
The V20 surge arrester made of halogen-free plastic is suitable for surge protection potential equalization according to VDE 0100-443 (IEC 60364-4-44). A dynamic disconnection device and optical status indicator characterize the modular plug-in arresters. The SurgeController is particularly suitable for potential equalization in main and sub-distributions, depending on the type, in TN networks. Thanks to the high-performance varistors, the discharge capacity is up to 40 kA (8/20) per pole. The vibration-resistant locking mechanism and the voltage and type coding ensure safety and prevent confusion between upper and lower parts. The wedge-shaped design of the contacts allows for easy insertion and even easier removal of the upper parts.
Surge protection type | Combination arrester, Surge arrester |
Number of conductors | 2x |
Nominal voltage | 230 V |
Mounting type | Top-hat rail |
Test class | Type 2 |
Item number | 13051354 |
Manufacturer | OBO Bettermann |
Category | Surge protection |
Manufacturer No. | 5095162 |
Release date | 7.4.2020 |
External links |
Material group | Plastic |
Material | Plastic |
Surge protection type | Combination arrester, Surge arrester |
Number of conductors | 2x |
Lightning impulse current | 40 kA |
Rated leakage surge current | 20 kA |
Nominal voltage | 230 V |
Mounting type | Top-hat rail |
Test class | Type 2 |
Protection type (IP code) | IP20 |
Country of origin | Germany, Hungary |
CO₂ emissions | 29.48 kg |
Climate contribution | CHF 0.70 |

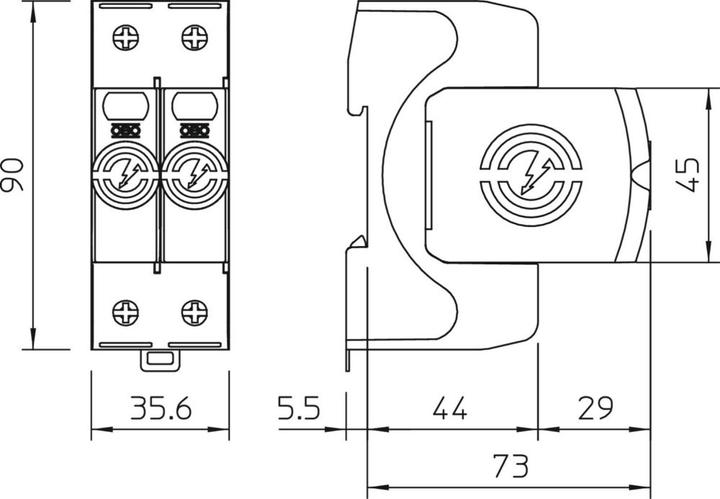

Width | 0.04 m |
Height | 0.09 m |
