OBO Bettermann OBO CTS-150 pipe shell, internally coated Ã107x150 grey

OBO Bettermann Pipe Sleeve CTS-150

Manufacturer: OBO Bettermann
Description: Inner-coated pipe sleeve
Type: CTS-150
Design: Prefabricated partition
Shape: Round

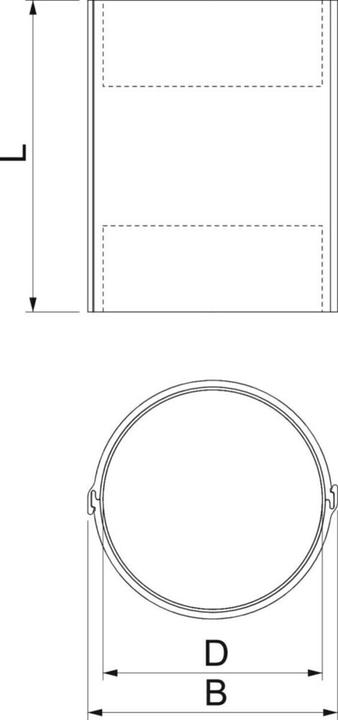

Outer diameter: 107 mm
Plate thickness/Product length: 150 mm
Additional accessories required: No

OBO Bettermann Pipe Sleeve CTS-150: further details

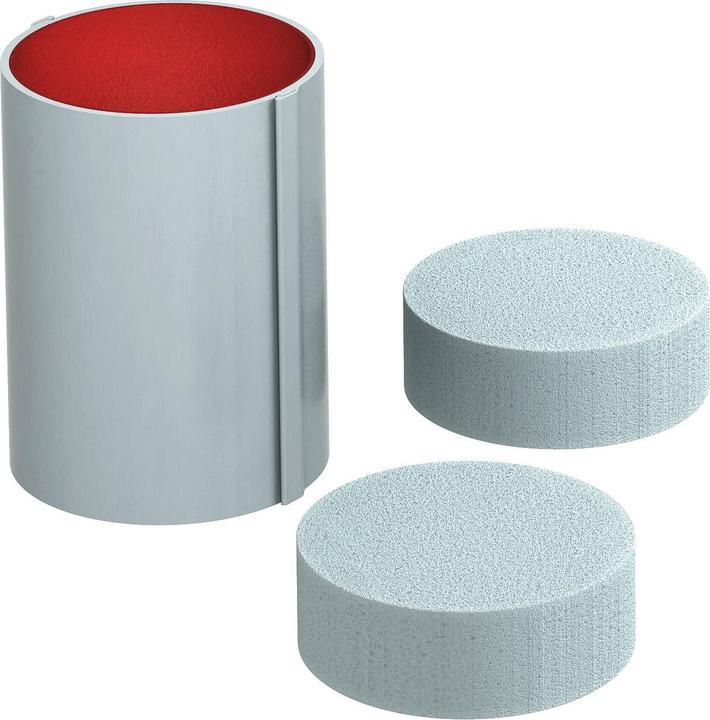

Inner-coated pipe sleeves with click closure. The interior can be fully equipped with cables and electrical installation pipes. Suitable for indoor use. CE marked, European approved construction product according to ETA-13/0904 and German general construction approval. Fire resistance up to 120 minutes. Closure with 2 included foam plugs. The surface sealing is done with the coating material PYROCOAT® ASX. In some applications, the use of metallic straps to secure the pipe sleeves in lightweight partitions is required. Details can be found in the installation instructions/approval.
