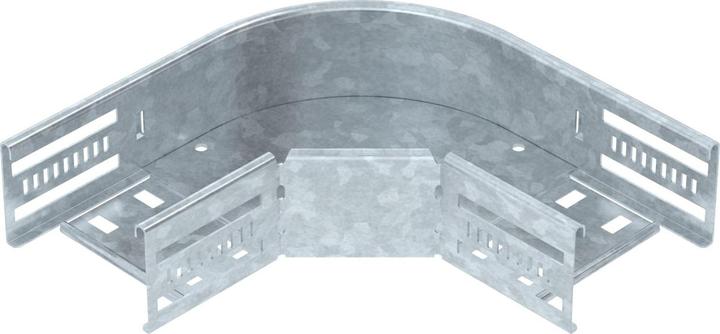

OBO Bettermann OBO 90° bend

OBO Bettermann 90 Degree Bend RB 90 610 FT

Manufacturer: OBO Bettermann
Description: 90 Degree Bend 60x100 hot-dip galvanized
Type: RB 90 610 FT
Direction Change: horizontal
Angle: 90°
Design: rigid bend
Bend Design: smooth bend
With Top Part: no
Inner Radius: 50 mm
Cable Tray Height: 60 mm
Cable Tray Width: 100 mm
Material Thickness: 0.8 mm
Side Hole: yes
Mounting Hole in Base: yes
NATO Hole Pattern: no
Execution: integrated connector
Suitable for Function Maintenance: yes
Material: Steel
Stainless Steel, Pickled: no
Surface Protection: hot-dip galvanized
Operating Temperature: -20 to 120 °C

OBO Bettermann 90 Degree Bend RB 90 610 FT: additional details
90° bend for creating a horizontal branch, fitting for snap-in and screwable cable trays with a side height of 60 mm. Tool-free assembly with double clamps or screw connection with flat round screws and combination nuts M6. Usable in indoor and outdoor areas. Mounting material must be ordered separately.
EAN: 4012197344436.
