OBO Bettermann DS-F W/W Protection device for high-frequency lines 130V 5093272
Product details

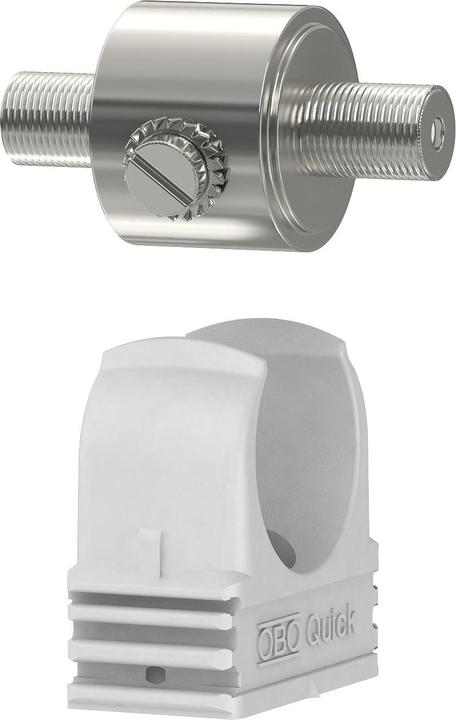

The DS-F W/W surge protection device from OBO Bettermann is a highly advanced solution for protecting high-frequency lines, particularly for TV and satellite systems as well as multiswitches and receivers. With a rated voltage of 130 volts and a high impulse current capacity of up to 2 x 2.5 kA (10/350), this device provides reliable protection against surges. Installation is straightforward via an intermediate plug, allowing for flexible handling. The device is equipped with an F-connector, ensuring optimal transmission performance. The OBO Quick Clamp M25 is included, significantly simplifying the installation process. This surge protection device is designed for use in various applications and offers an IP40 protection rating, making it ideal for indoor use.
- High impulse current capacity of 2 x 2.5 kA (10/350)
- Easy installation via intermediate plug
- Optimal transmission performance thanks to F-connector
- Includes OBO Quick Clamp M25 for easy installation
- IP40 protection rating for indoor use.
Protection type (IP code) | IP40 |
Length | 80 mm |
Width | 60 mm |
Height | 40 mm |
Item number | 22934378 |
Manufacturer | OBO Bettermann |
Category | Wiring closet technology |
Manufacturer no. | 5093272 |
Release date | 3.11.2022 |
Colour | White |
Exact colour description | White |
Plug type | DC connector |
Nominal current | 5 A |
Protection type (IP code) | IP40 |
Nominal voltage | 130 V |
Leakage current | 2.50 kA |
Country of origin | Hungary |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 pcs. |
Length | 80 mm |
Width | 60 mm |
Height | 40 mm |
