OBO Bettermann Device insert with installation housing 7427422
Only 3 pieces in stock at supplier
Product details

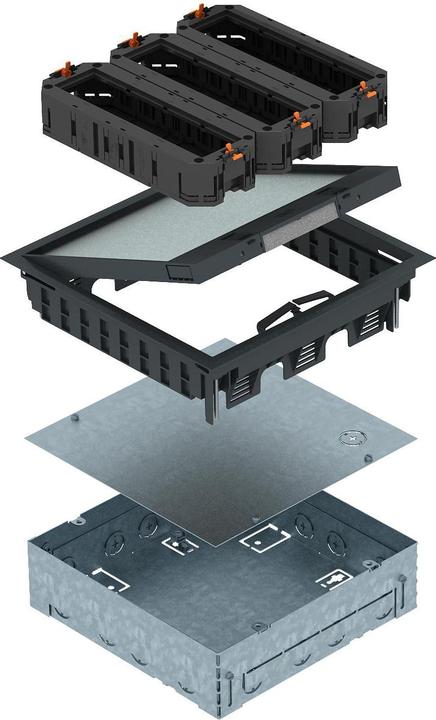

Square installation unit for twelve installation devices Module 45, designed for use in dry-maintained hollow floors and screed floors indoors. It consists of an installation housing, device insert GES9-2, three universal brackets UT, and two double safety socket outlets at a 33° angle in white. The installation housing features pre-formed entry openings for piping (M25) and is adjustable to the top edge of the screed. In its delivered state, the installation housing is sealed with a blank cover. The device insert can be installed into the created mounting opening after screed work is completed. The flooring cutout in the hinged cover of the device insert is available in 3, 5, 8, or 10 mm. The minimum installation depth is 73 mm, and the leveling range is +30 mm.
Junction box type | Connector socket |
Protection type (IP code) | IP20 |
Height | 73 mm |
Width | 264 mm |
Length | 264 mm |
Item number | 33776610 |
Manufacturer | OBO Bettermann |
Category | Junction box |
Manufacturer no. | 7427422 |
Release date | 17.5.2023 |
External links |
Colour | Black |
Exact colour description | Graphite black RAL number: 9011 |
Material group | Plastic |
Material | Plastic |
Junction box type | Connector socket |
mounting style | Floor mounting |
Area of use | Inside |
Protection type (IP code) | IP20 |
Country of origin | Hungary |
CO₂ emissions | 0.87 kg |
Climate contribution | CHF 0.11 |
Items per sales unit | 1 pcs. |
Height | 73 mm |
Width | 264 mm |
Length | 264 mm |
