OBO Bettermann Cable gland.

Ratings
BrandMore from OBO Bettermann
Currently out of stock
Free shipping starting at 50.–

Product details

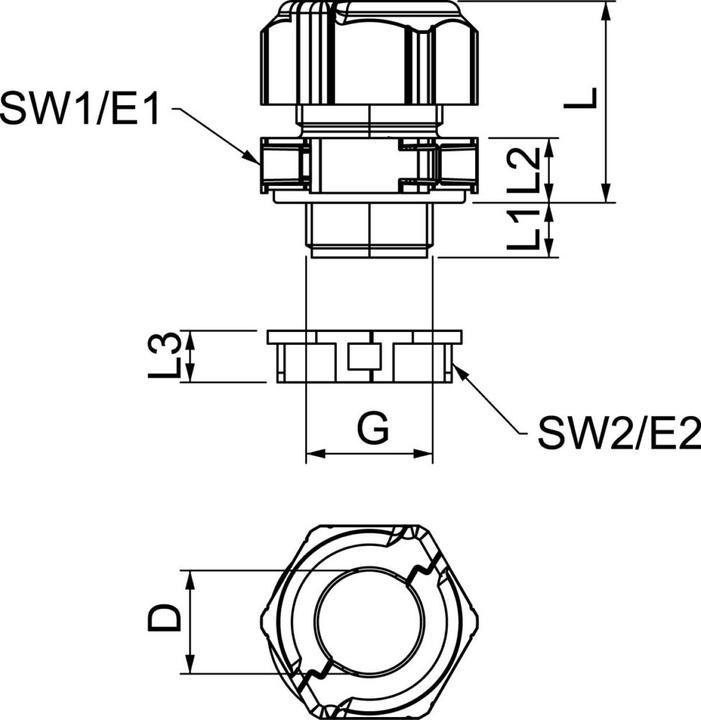

OBO Bettermann Cable Gland, Split V-TEC TB20

Manufacturer: OBO Bettermann
Description: Cable gland, split
Seal insert: closed
Type: V-TEC TB20
Thread type: metric
Thread nominal size metric/PG: 20
Thread pitch: 1.5 mm
Thread length: 10 mm
Wrench size: 30 mm
Material: Plastic
Material quality: Polycarbonate (PC)
Surface protection: untreated
Halogen-free: yes
Glass fiber reinforced: no
Protection class (IP): IP67
Impact resistant: yes
Color: gray
Bend protection: no
With counter nut: yes
Design: straight
Multiple seal insert: no
Flat cable gland: no
With strain relief: no
Type of seal: O-ring
Split gland: yes
Operating temperature: -20..80 °C
Explosion-proof version: no
For Ex zone gas: none
For Ex zone dust: none

The split cable gland V-TEC TB, like all V-TEC glands, ensures a secure sealing of cables. The installation of pre-assembled cables or functional lines is easy and quick due to the split design of the cable gland. The V-TEC TB is also unbeatable for retrofitting an existing installation or as a repair gland, allowing installation without disassembling pre-installed cables and without interrupting ongoing production.

Key specifications

Colour
Grey
Cable connection type
Cable gland
Clamps diameter
20 mm
Suitable for cable cross-section
1.50 mm²
Items per sales unit
5x

General information

Item number
33777528
Manufacturer
OBO Bettermann
Category
Cable joints
Manufacturer no.
2024940
Release date
17.5.2023
External links
Manufacturer's site (de)

Colour

Exact colour description
Grey
Colour
Grey

Material

Material
Polycarbonate (PC)
Material group
Plastic

Cable connection Properties

Cable connection type
Cable gland
Clamps diameter
20 mm
Suitable for cable cross-section
1.50 mm²
Plug type
Flat

Origin

Country of origin
Germany

Safety

Protection type (IP code)
IP67

Scope of delivery

Scope of delivery
Cable gland, Divisible
Items per sales unit
5x

Product dimensions

Length
10 mm
