OBO Bettermann Bettermann X02 Lgr

Ratings
BrandMore from OBO Bettermann
Currently out of stock
Free shipping starting at 50.–

Product details

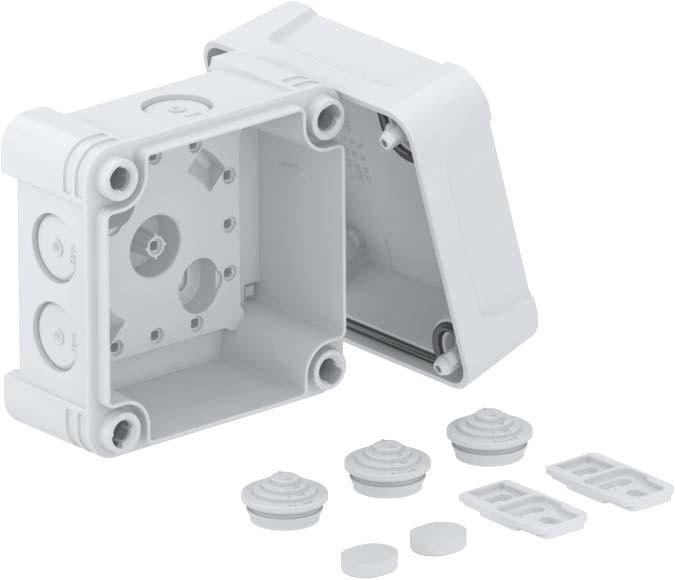

OBO Bettermann cable junction box X02 LGR

Manufacturer: OBO Bettermann
Designation: Cable junction box
Type: X02 LGR
Max. conductor cross-section: 2
Conductor cross-section: 2.5 mm²
Fitting: without
Shape: square
Mounting type: wall/ceiling mounting
Entry from rear: no
Length: 95 mm
Width: 95 mm
Depth: 72 mm
Bayable: yes
Number of entries: 7
Type of housing feed-through:
Material: plastic
Halogen-free: yes
Surface protection: untreated
Colour: grey
Protection class (IP): IP67
Cover fixing: screwed
Sealable: yes
Rated insulation voltage Ui: 750 V
With shielding: no
Weatherproof: yes
Operating temperature: -25 to 65 °C
Explosion-tested version: no

Further details:
Cable junction box for connecting cables and lines indoors and outdoors. Square shape with knock-out entries. Suitable for wall/ceiling mounting with the option of external mounting, internal mounting, or mounting via the corner domes. Particularly impact-resistant with IK09. Lid with quick-release fastener, sealable. Made of halogen-free and UV-resistant materials. Cable junction box according to DIN EN 60670. Flame-retardant according to DIN EN 60695-2-11, test temperature 650°C. Impact resistance IK09 according to DIN EN 50102. Protection class IP67 according to DIN EN 60529.

Key specifications

Protection type (IP code)
IP67
Height
72 mm
Width
95 mm
Length
95 mm

General information

Item number
31946613
Manufacturer
OBO Bettermann
Category
Junction box
Manufacturer no.
2005004
Release date
12.10.2022
External links
Manufacturer's site (de)

Colour

Colour
Grey
Exact colour description
Grey

Material

Material group
Plastic
Material
Plastic

Junction Box Features

mounting style
Adhesive, Duvet
Area of use
Inside, Outside

Safety

Protection type (IP code)
IP67

Origin

Country of origin
Germany

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Height
72 mm
Width
95 mm
Length
95 mm
