Nord-Lock Flat washer R 88132

M8
CHF0.59/1pcs.
Ratings
BrandMore from Nord-Lock
Delivered between Wed, 29.4. and Fri, 1.5.
Only 2 pieces in stock at third-party supplier
Supplied by
free shipping

Internal diameter14

Product details

The NORD-LOCK® wedge locking washer pair according to DIN 25 201 is a purely mechanically functioning machine element that secures the screw connection through pre-tensioning force rather than friction, making it superior to conventional screw locking mechanisms. When the screw or nut is tightened, the radial ribs of the NORD-LOCK® locking washers form a positive fit into the counter surface. The washer pair sits firmly in place, and movement is only possible between the wedge surfaces. Even with the slightest rotation in the loosening direction, the wedge effect increases the pre-tensioning force - thus, the screw secures itself. NORD-LOCK® provides reliable screw locking, even under extreme vibrations or dynamic loads. Due to the high hardness of the washers, they can also be used with high-strength screws up to and including strength class 12.9.

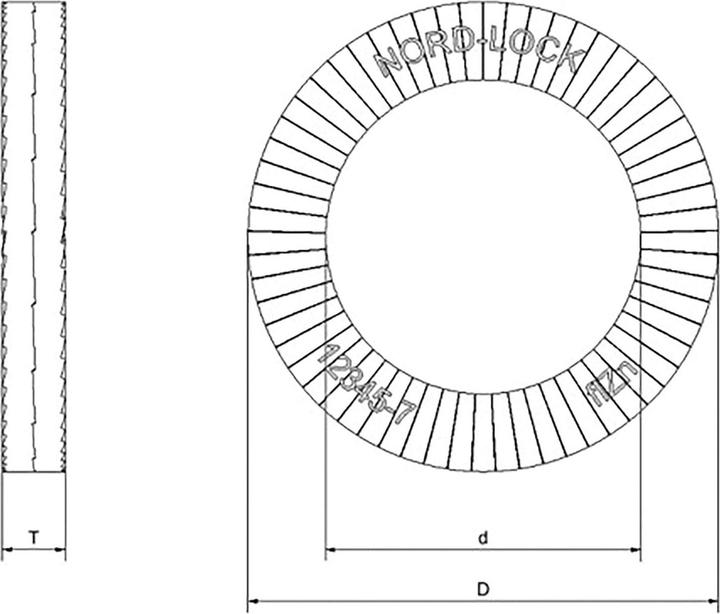

d(mm): 8.7 D(mm): 13.5 Surface: zinc flake coated T = Thickness of the pair (mm): 2.5 for ø: M 8 Size (mm): NL 8 Content (PAA): 200.

Key specifications

Metal type
Steel
accessory type
Washer
Items per sales unit
200x
Internal diameter
8.70 mm
Outside diameter
13.50 mm

General information

Item number
22018196
Manufacturer
Nord-Lock
Category
Nuts + Washers
Manufacturer no.
881320300080000
Release date
8.9.2022

Material

Material group
Metal
Metal type
Steel
Material
Steel hardened and tempered

Screws Accessories Features

accessory type
Washer
thread type
M8

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
18.81 kg
Climate contribution
CHF 0.45

Scope of delivery

Items per sales unit
200x

Product dimensions

Internal diameter
8.70 mm
Thickness
2.50 mm
Outside diameter
13.50 mm

Package dimensions

Length
7.50 cm
Width
6.80 cm
Height
4.30 cm
Weight
284 g

30-day right of return
No warranty
