Niedax Wall bracket KTA600 ** 610mm

Niedax Wall Bracket KTA 600
Manufacturer: Niedax
Designation: Wall Bracket
Type: KTA 600
Length: 610 mm
Width: 50 mm
Height: 90 mm
Suitable for cable tray widths: 50-600 mm
Design: Wall and pole bracket
Angle: 90 °
Max. safe working load according to IEC 61537: 2500 N
Suitable for functional integrity: yes
Material: Steel
Material quality: other
Surface protection: hot-dip galvanized
Operating temperature: -20 to 120 °C

Niedax Wall Bracket KTA 600: additional details
Suspended pole and wall brackets, standard, for wall and suspended pole installation, including galvanically galvanized proportional mounting accessories. The load capacity specifications apply only with sufficient anchoring to the supporting substrate or with compliant installations on suspended poles. For use in functional integrity (KTA 100-400) or for ceilings with fire protection requirements, please observe additional regulations! VDE certified!

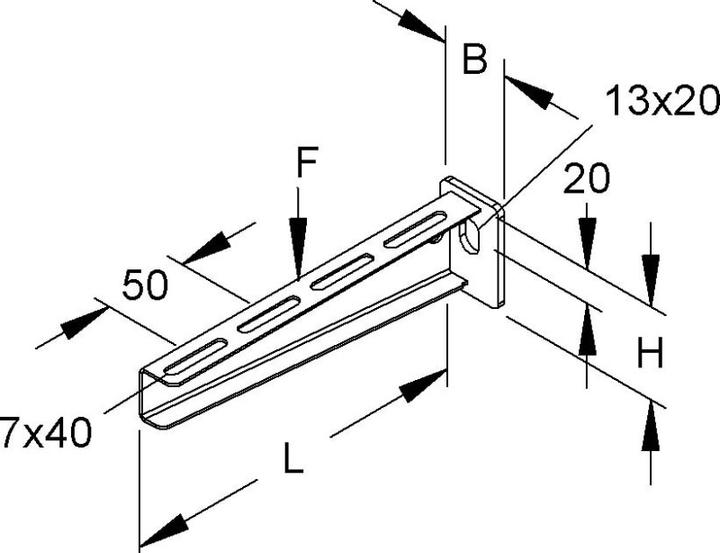

Dimensions (approx. measurements)
Support height H: 90 mm
Support length L: 610 mm
Load capacity F at L/2: 2.5 kN tested in the system
Material of bracket: Steel, hot-dip galvanized according to DIN EN ISO 1461
EAN: 4013339187904.
