Product details
Niedax U-Profile U 4530/300 SL
Manufacturer: Niedax
Designation: U-Profile
Dimensions: 43.5 x 29.5 x 300 mm
Type: U 4530/300 SL
Length: 300 mm
Width: 30 mm
Height: 45 mm
Slot width: 30 mm
Material thickness: 2 mm
Profile shape: U-profile
Design: Single profile
Type of perforation: 3 sides perforated
Hole width: 11 mm
With serration: No
Snap-off: No
Surface moment of inertia (ly): 1.34 cm4
Surface moment of inertia (lz): 3.95 cm4
Moment of resistance (Wy): 0.65 cm³
Moment of resistance (Wz): 1.81 cm³
Suitable for functional integrity: No
Material: Steel
Material quality: Other
Surface protection: Strip galvanised
Weight: 0.3659 kg
Niedax U-profile U 4530/300 SL: further details
Profile U 4530, perforated on three sides, for the manufacture of suspended standards and support structures with system components.

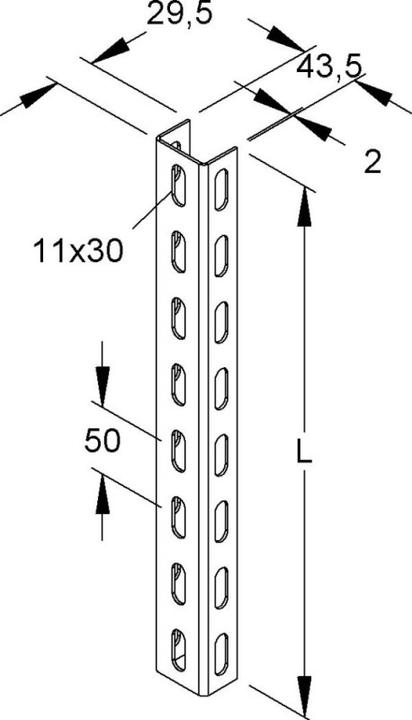

Dimensions (approx.) U-profile: 43.5 x 29.5 x 29.5 mm
Profile thickness: 2 mm
Three-sided profile perforation, single row: 11 x 30 mm
Centre-to-centre spacing: 50 mm
Length: 300 mm
Material: Steel, strip galvanised to DIN EN 10346.
