Niedax Support asymmetric closed rectangular tube ungel.
40 cmDelivered between Fri, 10.7. and Fri, 24.7.
free shipping
Product details

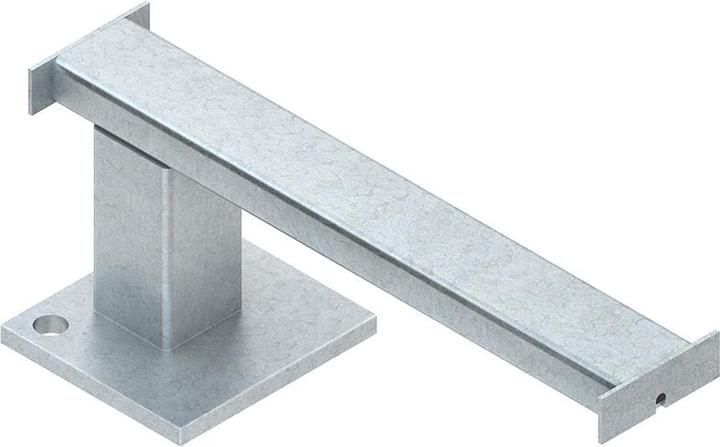

Support, asymmetrical, closed, unperforated, for the installation of cable trays over ground-level laid pipes of walkable cable trays. It consists of a horizontal steel tube, a vertical steel tube, and a rectangular base plate with mounting holes.
Usable for: walkable cable trays.
Dimensions (approx. measurements):
- Support height H: 108 mm
- Support width B: 392 mm
- Asymmetrical horizontal steel tube dimension A: 18 mm
- Asymmetrical horizontal steel tube dimension C: 334 mm
- Horizontal steel tube according to DIN EN 10219-2: 40 x 20 x 2 mm
- Vertical steel tube according to DIN EN 10219-2: 40 x 40 x 2 mm
Material: Steel, galvanized according to DIN EN ISO 2081, blue passivated.
Exact colour description | blue passivated |
Material | blue passivated, Galvanised in accordance with DIN EN ISO 19598, Galvanised in accordance with DIN EN ISO 2081, Steel |
Height | 10.80 cm |
Width | 39.20 cm |
Length | 40 cm |
Item number | 31263293 |
Manufacturer | Niedax |
Category | Cable routing |
Manufacturer no. | RSSTAU 108.400 V |
Release date | 22.9.2022 |
Colour | Silver |
Exact colour description | blue passivated |
Material group | Metal |
Material | blue passivated, Galvanised in accordance with DIN EN ISO 19598, Galvanised in accordance with DIN EN ISO 2081, Steel |
Country of origin | Germany, Turkey |
CO₂ emissions | 6 kg |
Climate contribution | CHF 0.14 |
Items per sales unit | 1x |
Height | 10.80 cm |
Width | 39.20 cm |
Length | 40 cm |
Specifications may include unverified machine translations.
