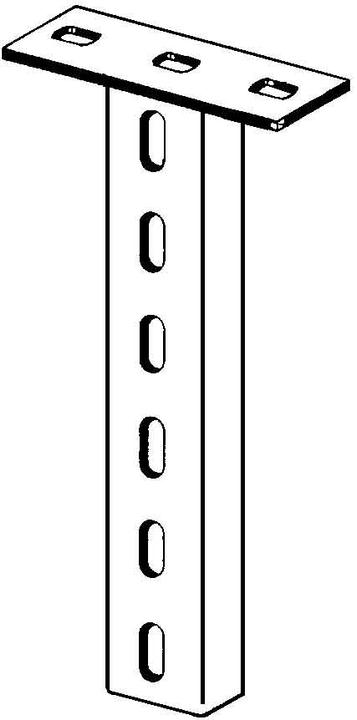

Niedax NIE HUF 50/600 E3 hanging pole U-profile 50x22x600mm stainless steel

Hanging pole, U-profile with welded head plate, System HUF 50 E3, for brackets for single-sided and double-sided installation. The double-sided arrangement of the brackets horizontally at the same height using spacer UD 24 E3 is possible. For static reasons and to allow for a trouble-free installation of the protective cap, the bracket must be mounted at a distance of 50 mm from the bottom edge of the bracket to the end of the hanging pole, above the end of the hanging pole. VDE certified! For brackets KTUM E3 up to 400 mm in length. Dimensions approx. Head plate dimensions: 140 x 40 x 4 mm, mounting hole 13 x 20 mm, center distance 100 mm, U-profile 50 x 22 x 2 mm, single-row profile hole 12 x 30 mm, center distance 50 mm. Total length: 604 mm. Material stainless steel, material number 1.4301 HUF 50600 E3.
