Niedax Hanging handle galvanised 400MM ** Huf 50/400
Delivered between Sat, 21.12. and Fri, 3.1.
More than 10 items in stock at supplier
More than 10 items in stock at supplier
Product details

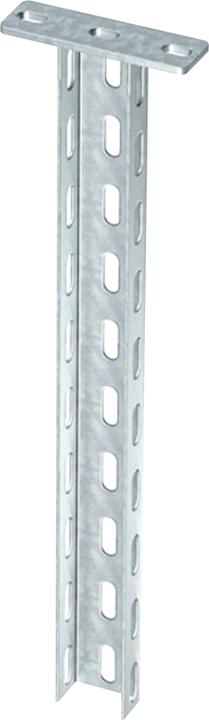

Niedax HUF 50/400 Hanging Handle Manufacturer :Niedax Designation :Hanging Handle Type :HUF 50/400 Length :401 mm Profile width :22 mm Profile height :50 mm Design :U-profile Load capacity :2 kN Suitable

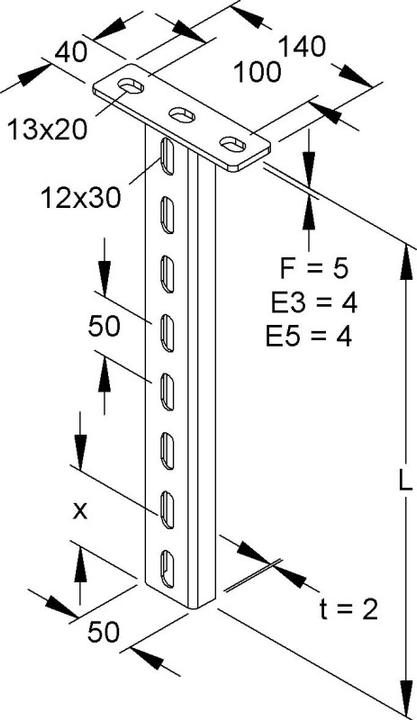

for functional maintenance :yes Material :Stainless steel, pickled :no Material grade :other Surface protection :hot-dip galvanised Weight :0.75779 kg Niedax HUF 50/400 suspended support: further details Suspended support, U-profile with welded-on top plate, system HUF 50/......, for cantilevers for one-sided and two-sided installation, horizontal arrangement of cantilevers on both sides at the same height possible by means of spacer UD 24. For static reasons and to enable trouble-free fitting of the protective cap, the bracket must be fitted at a distance of x=50 mm (lower edge of bracket to end of suspension rod) above the end of the suspension rod. For use in function maintenance, please observe additional instructions! VDE certified! for outriggers: KTUL... KTUM... for double cantilever: KTDL... for central suspension: ZKU... = 400 mm length for outriggers: KTUG... = 400 mm length (function maintenance) for cantilever: KTU... = 400 mm length in conjunction with bracket adapter KAWG 12 (functional integrity) Dimensions (approx.) Dimensions) Head plate L x W x d: 140 x 40 x 5 mm Mounting holes: 13 x 20 mm Central spacing: 100 mm U-profile: 50 x 22 x 2 mm Profile holes, single row: 12 x 30 mm Central spacing: 50 mm Total length L: 401 mm Material: Steel, hot-dip galvanised according to DIN EN ISO 1461 , EAN: 4013339169009.
| Item number | 22654418 |
| Manufacturer | |
| Category | |
| Manufacturer no. | HUF 50/400 |
| Release date | 13.10.2022 |
| Maximum order quantity | 55 |
| Colour group | Black |
| Exact colour description | Hot dip galvanized |
| Material group | Metal |
| Specific material description | Steel |
| Country of origin | Germany |
| Items per sales unit | 1 x |
| Height | 0.05 m |
| Width | 0.02 m |
| Length | 0.40 m |
| Weight | 757.79 g |
| Length | 40.50 cm |
| Width | 11.60 cm |
| Height | 3.60 cm |
| Weight | 731 g |
Specifications may include unverified machine translations.
