Niedax fire protection plug BSS 90/200
Manufacturer: Niedax
Designation: Fire protection plug
Type: BSS 90/200
Design: Foam plug
Shape: Round

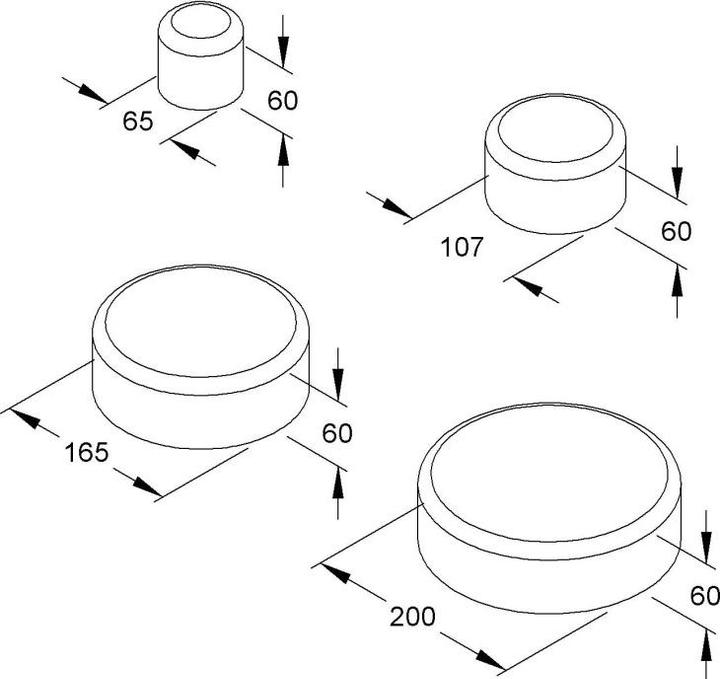

Outer height: 60 mm
Outer width: 200 mm
Outer diameter: 200 mm
Panel thickness/product length: 60 mm
Accessories required: No

Niedax fire protection plug BSS 90/200: Further details

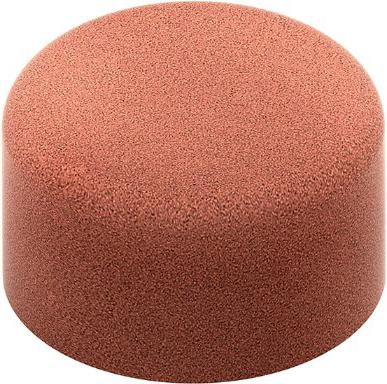

This fire protection plug is made from permanently elastic, largely closed-cell cylindrical foam that forms an insulating layer when exposed to heat.

Area of application: Smoke-tight cable penetration seals in fire protection sections, particularly in rooms sensitive to dust, fibers, and moisture, as well as in and around electrical installation ducts for sealing cable penetrations in walls and ceilings in accordance with DIN 4102 Part 9, approved for fire resistance class S 90. The technical specifications of the general type approval Z-19.53-2470 must be observed during planning and implementation. Fill openings and gaps with BSM 90 fire protection compound. Please observe the additional regulations for use in functional integrity.

Outer diameter: 200 mm
Core hole: 190 mm
Wall thickness: Minimum 150 mm
Ceiling thickness: Minimum 200 mm
Cable assignment: Maximum 60% for each body shell opening
EAN: 4013339466566.
