Product details

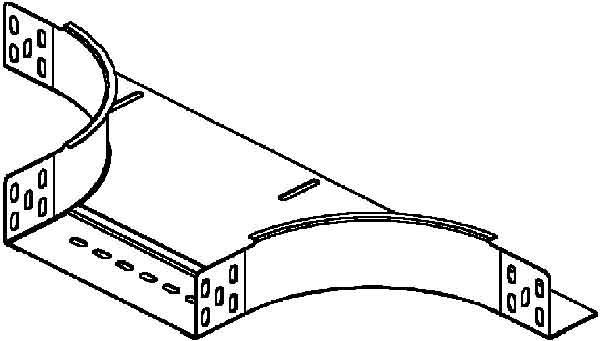

Branch T-piece with unperforated side beams and connector holes for connection to cable trays. It is used to create horizontal 90-degree drops and intersections of varying or equal widths, depending on the main direction. The product features integrated joint connectors and includes proportional fastening accessories.
For cable trays: 60 mm edge height. Dimensions approximately 60 x 602 mm. Internal beam radius: 138 mm. Notch of the cable trays: 280 mm.
Material: Steel, strip galvanized according to DIN EN 10346 RTA 60.600.
Material | Steel, Strip galvanised in accordance with DIN EN 10346 |
Cable routing type | Cable support system |
Height | 6 cm |
Width | 60.20 cm |
Length | 6 cm |
Item number | 20020095 |
Manufacturer | Niedax |
Category | Cable routing |
Manufacturer no. | RTA 60.600 |
Release date | 16.3.2022 |
External links |
Material group | Metal |
Material | Steel, Strip galvanised in accordance with DIN EN 10346 |
Cable routing type | Cable support system |
Operating temperature | 120 °C |
Country of origin | Germany |
CO₂ emissions | 6 kg |
Climate contribution | CHF 0.14 |
Items per sales unit | 1x |
Height | 6 cm |
Width | 60.20 cm |
Length | 6 cm |
