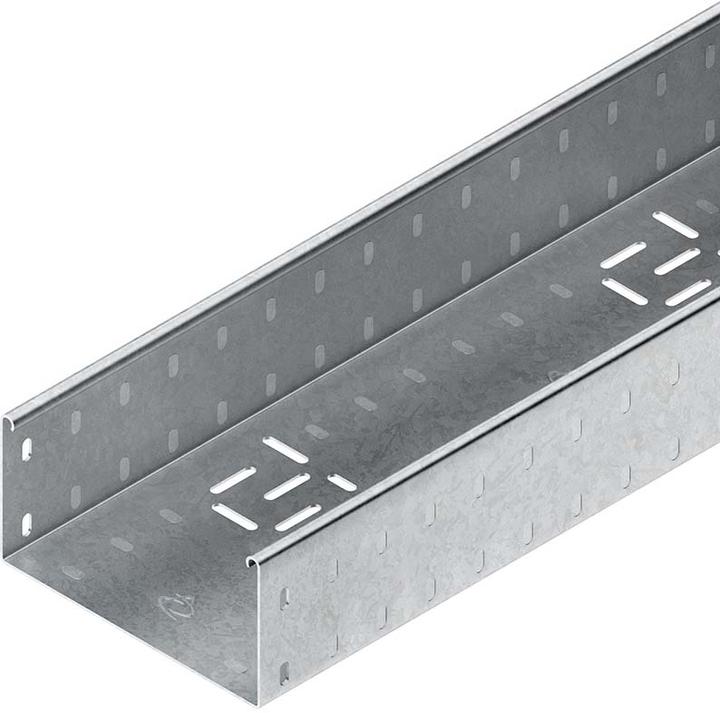

Niedax Cable tray heavy

Cable tray, heavy, to DIN EN 61537, with combi-perforation for stepless divider fastening and pre-stamped break-out openings, without connectors but with connector perforations at both ends for connection, for the walkable cable tray system. Please order two RSUV 100-1.5 S / RSUVKS 100-1.5 S universal connectors per joint separately. Dimensions (approx. Dimensions) H x W : 100 x 300 mm Material thickness t : 2 mm Double-row bottom longitudinal perforation : 7 x 33 mm Longitudinal spacing : 25 mm Centre row spacing : 26.5 mm Double-row bottom cross perforation : 7 x 33, 7 x 20 Centre row spacing : 64 mm Centre pattern longitudinal spacing : 300 mm Double-row knock-out openings on both sides : 7 x 15 mm longitudinal grid dimension : 37.5 mm row spacing : 50 mm double-row knock-out openings in the base : 7 x 15 mm longitudinal grid dimension : 37.5 mm row spacing from the side rails : 37.5 mm delivery length L : 3000 mm usable cross-section : 29800 mm² material : steel, strip galvanised to DIN EN 10346.
