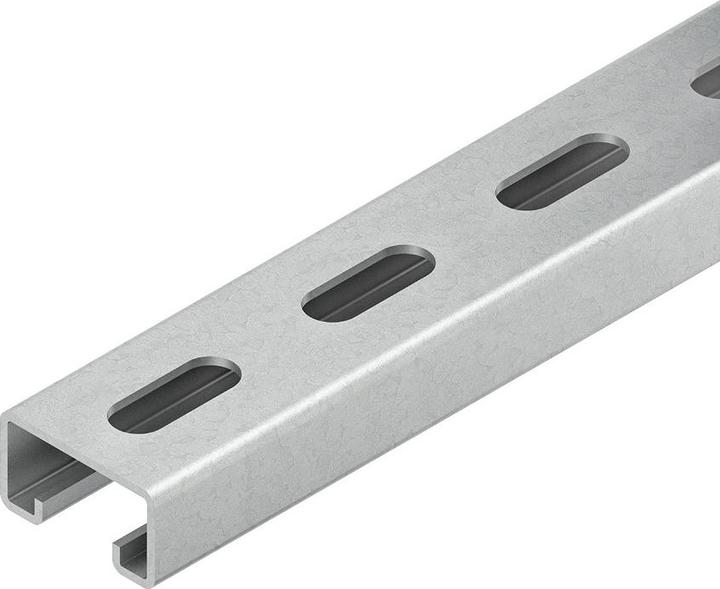

Niedax Anchor rail

Niedax Anchor Rail 2986/300 FL

Manufacturer: Niedax
Designation: Anchor Rail
Type: 2986/300 FL
Length: 300 mm
Width: 40 mm
Height: 22 mm
Slot Width: 18 mm
Material Thickness: 2 mm
Profile Shape: C-Profile
Design: Simple Profile
Type of Perforation: Back Perforated
Hole Width: 11.5 mm
With Notching: No
Breakable: No
Area Moment of Inertia ly: 1.37 cm4
Area Moment of Inertia lz: 4.51 cm4
Section Modulus Wy: 1.11 cm³
Section Modulus Wz: 2.25 cm³
Suitable for Function Maintenance: No
Material: Steel
Material Quality: Other
Surface Protection: Hot-Dip Galvanized
Weight: 0.49192 kg

Niedax Anchor Rail 2986/300 FL: Additional Details
Anchor/Profile Rail Model 2986, C-Profile according to DIN EN 60715, perforated. Compatible clamp brackets available. In areas of personal hazard, the protective cap SKC 86 must be installed. To ensure proper fitting of the protective cap, a distance of at least 30 mm from the profile end must be maintained. For use in function maintenance, please observe additional regulations. The attachment of the anchor rail to the foundation and the fastening distances are to be taken from the currently valid test certificate.

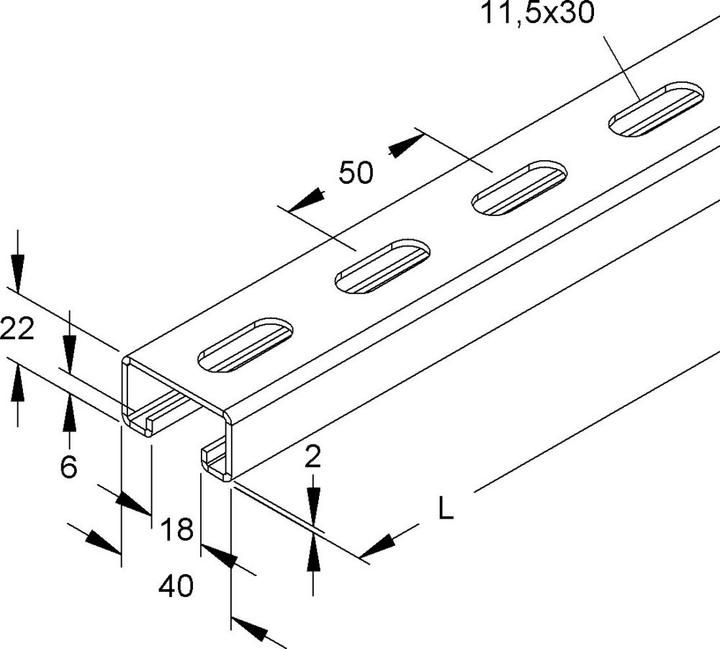

Dimensions (approx. measurements)
H x W x t: 22 x 40 x 2 mm
Slot Width: 18 mm
Profile Perforation: 11.5 x 30 mm
Center Distance: 50 mm
Delivery Length L: 300 mm
Material: Steel, hot-dip galvanized according to DIN EN ISO 1461.
