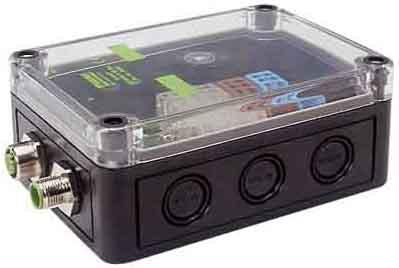

Murr Elektronik Terminal module

Murrelektronik terminal module 56681
Manufacturer: Murrelektronik
Designation: Terminal module
Type: 56681
Supply voltage (DC): 24 V
Type of supply voltage: DC
Number of digital inputs: 8
Number of digital outputs: 8
Output current: 0.5 A
Permissible voltage at output: 24 V
Type of output voltage: DC
Short-circuit protection for outputs: No
With optical interface: No
Supports protocol for TCP/IP: No
Supports protocol for PROFIBUS: No
Supports protocol for CAN: No
Supports protocol for INTERBUS: No
Supported protocol for ASI: No
Supported protocol for KNX: No
Supported protocol for MODBUS: No
Supported protocol for Data-Highway: No
Supported protocol for DeviceNet: No
Supported protocol for SUCONET: No
Supported protocol for LON: No
Supported protocol for PROFINET IO: No
Supported protocol for PROFINET CBA: No
Supported protocol for SERCOS: No
Supported protocol for Foundation Fieldbus: No
Supported protocol for EtherNet/IP: No
Supported protocol for AS-Interface Safety at Work: No
Supported protocol for DeviceNet Safety: No
Supported protocol for INTERBUS-Safety: No
Supported protocol for PROFIsafe: No
Supported protocol for SafetyBUS p: No
Supported protocol for other bus systems: No
Bluetooth radio standard: No
WLAN 802.11: No
IO-Link master: No
System component: Yes
Protection class (IP): IP67
Electrical connection type: Plug-in connection
Delay time for signal change: 1 ms
Fieldbus connection possible via separate bus coupler: Yes
Mounting rail mounting possible: No
Wall/direct mounting possible: Yes
Width: 94 mm
Height: 130 mm
Depth: 81 mm
Murrelektronik terminal module 56681: further details
Cube67 I/O terminal expansion module with 8 digital inputs and 8 multifunction channels
This product is for professional use only.
EAN: 4048879048293.
