Modino priamos small station wagon UP
Only 3 pieces in stock at supplier
Product details

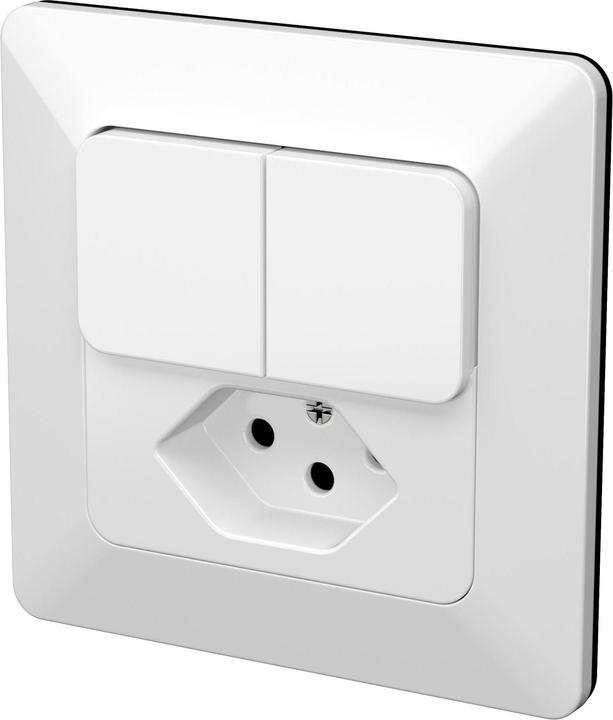

Small combination unlit with double push-button switch scheme 1 (3+3) and socket type 13, 10 A, 250 V AC, L + N + PE. With terminal blocks, installation depth 30 mm, white, IP20, 90 x 90 mm.
This combination is mounted in a device box in the wall. It consists of a socket type 13 and a scheme 3+3 push-button switch. Thanks to the terminal blocks, the connection is quick and easy.
The innovative switch and socket program modino priamos impresses with modern Swiss design and high-quality craftsmanship. The interchangeable colored design profiles allow for a customizable harmony between furnishings and electronics. The extensive range offers solutions for the most demanding application challenges. The antibacterial surface reduces the risk of infection from frequent contact, for example in public spaces.
Light switch + socket Type | Combination switch + socket outlet |
Application range | Indoor |
Number of cans | 1 x |
Number of switches | 2 x |
Exact colour description | White RAL number (similar): 1013 |
Mounting type | Flush-mounted |
Documents | |
Item number | 6614545 |
Manufacturer | Modino |
Category | Light switches + Plug sockets |
Manufacturer no. | 140160 |
Release date | 9.3.2018 |
Colour | White |
Exact colour description | White RAL number (similar): 1013 |
Material group | Plastic |
Material | Polycarbonate (PC) |
Light switch + socket Type | Combination switch + socket outlet |
Mounting type | Flush-mounted |
Application range | Indoor |
Light switch type | Switch |
Number of switches | 2 x |
Additional properties | Switch |
Plug type | Type 13 |
Protection type (IP code) | IP20 |
Nominal current | 10 Ah |
Nominal voltage | 250 V |
Area of use | Inside |
Socket type | Type 13 |
Number of cans | 1 x |
connector type | Plug terminal |
Smart Home | Not compatible |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Length | 9 cm |
Width | 9 cm |
Height | 9 cm |
Weight | 0.20 kg |
Stack depth | 30 mm |
Cable length | 0.09 m |
Length | 14.50 cm |
Width | 11.50 cm |
Height | 6 cm |
Weight | 122 g |
