Mitutoyo Internal micrometer
Delivered between Thu, 7.8. and Fri, 8.8.
Only 1 piece in stock at supplier
Only 1 piece in stock at supplier
free shipping
Product details

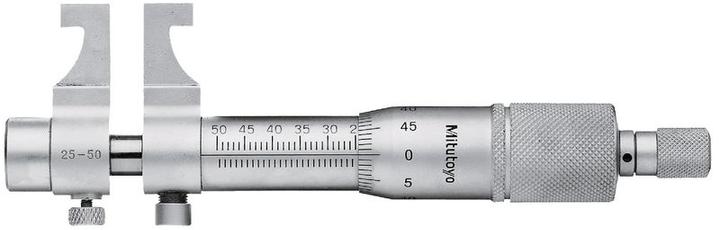

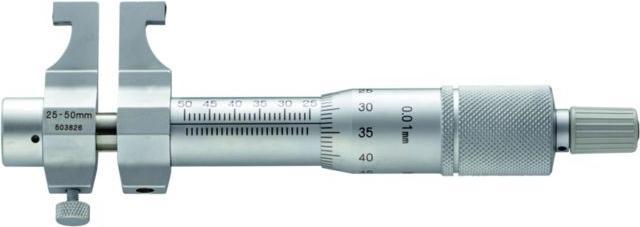

Design: Fully hardened, ground, and polished spindle. Tapered and rounded measuring jaws equipped with carbide. Consistent measuring pressure through a feel ratchet. Measuring drum with cleanly engraved and black inlaid graduations and numbers. Measuring screw is chrome-plated. Includes adjustment screw and locking screw.
Display type | Analogue |
Min. measuring range | 25 mm |
Max. measuring range | 50 mm |
Resolution | 0.01 mm |
Accuracy | 0 mm |
Measuring spindle diameter | 18 mm |
Item number | 10004089 |
Manufacturer | Mitutoyo |
Category | Dial gauge + micrometer |
Manufacturer no. | 145-186 |
Release date | 25.10.2018 |
Material | Hard metal |
Material group | Metal |
Display type | Analogue |
Min. measuring range | 25 mm |
Max. measuring range | 50 mm |
Resolution | 0.01 mm |
Accuracy | 0 mm |
Measuring spindle diameter | 18 mm |
CO₂-Emission | |
Climate contribution |
Weight | 140 g |
Length | 14 cm |
Width | 7 cm |
Height | 3 cm |
Weight | 204 g |
Specifications may include unverified machine translations.
